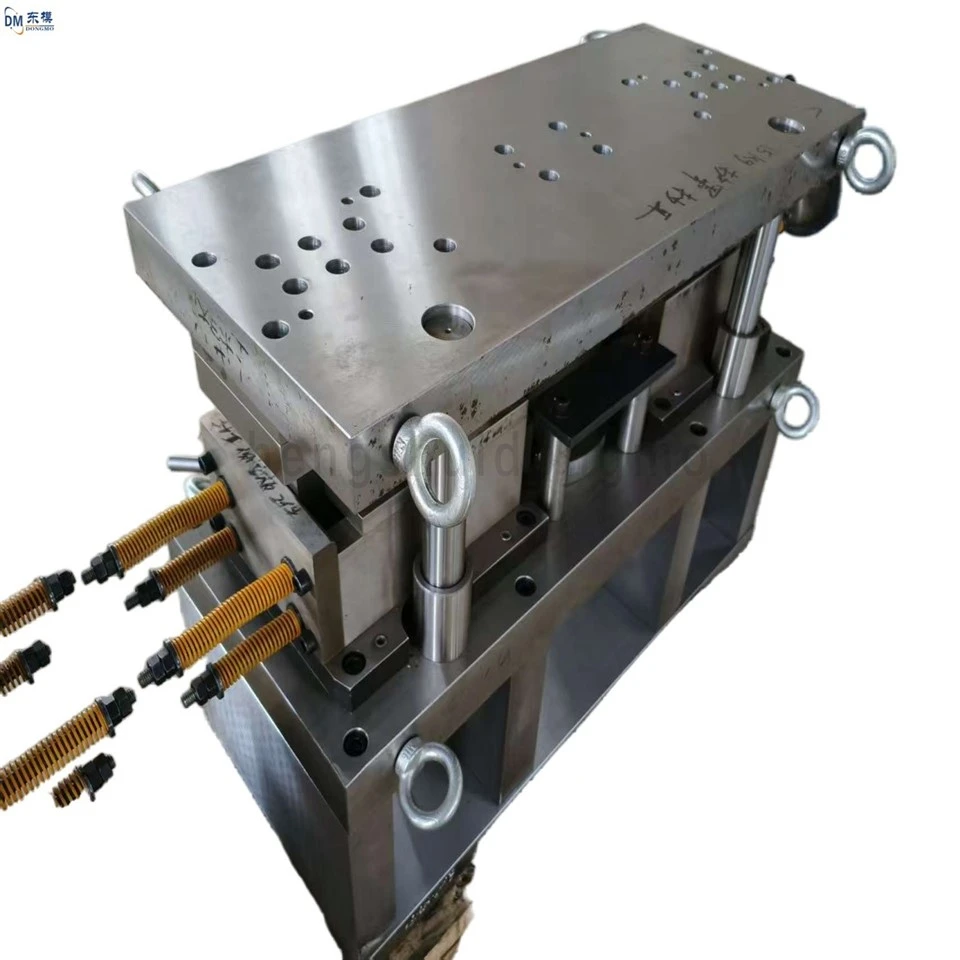

Customized Continuous Stretching Dies; Metal Stamping Die Production.

I. Practical Application and Development of Digital Design for Stamping Dies
Traditional stamping die design relies on engineers' experience and manual drafting, resulting in long design cycles and high error rates, making it unsuitable for mass production needs. Currently, stamping die design fully utilizes CAD/CAE collaborative design platforms, combined with virtual simulation technology, to achieve end-to-end digital design, replacing the traditional manual design mode.

During the design phase, 3D modeling accurately recreates the die structure, and CAE simulation simulates the stamping process, predicting defects such as wrinkles, cracks, and springback. This allows for early optimization of the die cavity structure, process layout, and clearance settings, reducing design errors. The die design error rate has been reduced by over 80%. The digital design platform enables full lifecycle management of design data, connecting data across design, processing, and assembly stages, avoiding rework caused by data gaps. The multidisciplinary collaborative design model integrates structural design, material analysis, and process optimization capabilities, improving the rationality of die design, extending die life by 30%, and increasing the yield of stamped parts to over 99.5%.

II. Practical Application of Smart Manufacturing Technology in Stamping Dies
Smart manufacturing technology focuses on the integration of big data, the Internet of Things (IoT), artificial intelligence (AI), and automation to achieve automated and flexible management of the entire stamping die manufacturing process, reducing manual intervention and improving processing accuracy and efficiency.

Die component processing utilizes an integrated system of CNC machining centers and industrial robots, achieving automatic clamping, automatic processing, and automatic inspection. Processing accuracy is controlled within ±0.005mm, and the part dimensional consistency rate is ≥99.8%. Sensors are installed on processing equipment and dies using IoT technology to collect real-time data on speed, temperature, vibration, and load. AI algorithms analyze the data to achieve real-time monitoring of equipment operating status, providing early warnings of faults, reducing downtime by more than 30%, and guiding die maintenance. An intelligent warehouse management system automates the inbound and outbound operations and inventory management of die materials and components, reducing inventory costs by 25% and shortening die delivery cycles by 20%-30%.

III. Practical Benefits of Digitalization and Intelligent Applications The deep integration of digital design and intelligent manufacturing technologies in stamping dies brings significant practical benefits to enterprises, helping them achieve refined and green production.

Design cycles are shortened by 40%-50% compared to traditional methods, significantly accelerating die delivery and facilitating rapid product launches. Die manufacturing quality is stable, with a scrap rate of over 85% for stamped parts, reducing rework losses and lowering production costs. Intelligent monitoring systems collect real-time data from the entire production process, enabling refined control of processing parameters, equipment status, and die wear, optimizing production resource allocation, improving production efficiency, and driving enterprises towards intelligent and green transformation, meeting the high-quality development needs of modern manufacturing.
