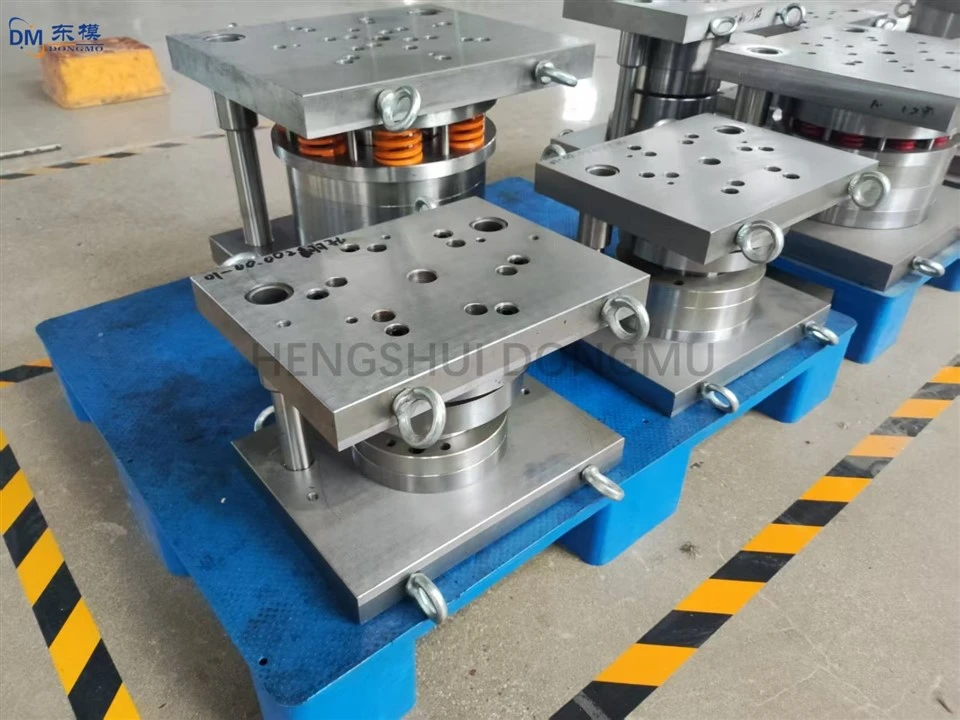

Metal Stamping Progressive Dies, Stainless Steel Automotive Electronic Parts Stamping

Precision stamping dies for electronics are core equipment for the mass production of microelectronic components. Their design and manufacturing precision directly determines the performance and assembly compatibility of these components. As electronic products upgrade towards miniaturization and high density, the design and manufacturing of precision stamping dies for electronics faces numerous practical challenges, requiring a comprehensive approach that combines material properties, structural precision, and process control.

Electronic precision stamping parts are mostly 0.1-5mm in size and often feature irregular microstructures. The tolerances for key features such as hole positions and slot widths must be controlled within ±0.005mm, and the form and position tolerances ≤0.003mm. This places extremely high demands on die precision and detail machining. Die design must simultaneously ensure high precision and sufficient rigidity. Key components such as the die punch and die must control elastic deformation within 0.002mm to ensure dimensional stability during high-frequency stamping (80-120 times/minute), preventing dimensional deviations in electronic components that could affect subsequent assembly. The die structure must be adapted to microstructure machining, avoiding stress concentration in detailed areas and preventing premature die wear and chipping.

Materials selection and process control are among the core challenges in die manufacturing. Precision electronic stamping dies must withstand high-frequency impacts and friction. Key components require high-precision, wear-resistant alloy steels such as SKD11 and DC53, which undergo vacuum quenching and cryogenic treatment to achieve a hardness of HRC58-62, balancing wear resistance and toughness to meet the demands of high-speed, high-frequency stamping. During manufacturing, material processing accuracy must be controlled within ±0.003mm. The heat treatment process requires strict control of quenching and tempering temperatures and holding times to avoid defects such as uneven hardness and cracks. Otherwise, these defects will directly affect the die's accuracy and lifespan, leading to surface scratches and dimensional deviations in electronic components.
