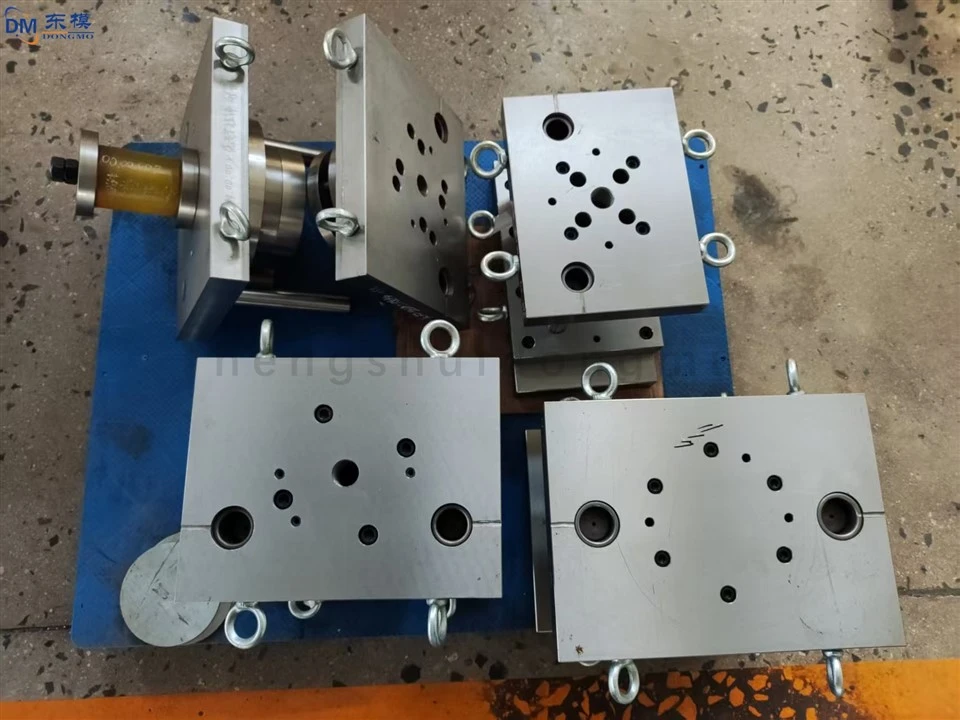

High-Speed Progressive Die Mould For Stamped Connectors

A precision pilot system aligns the strip at each station, so cut features never drift. Even at 200 strokes per minute, the carrier strip moves smoothly, and the finished parts drop out consistently. This reliability is what volume manufacturers need to meet tight deadlines.

We build the die plates with replaceable inserts at high-wear areas. When a punch becomes dull, you just swap the insert rather than rebuilding the whole station. This keeps the mould running with minimal downtime on the shop floor. Quick-change inserts let staff service it in the press.

Related Links

Beyond connectors, the same approach works for terminal clips, switch contacts, and small brackets used in home appliances. After setup, the process is automated, so one operator can oversee multiple lines. Expect uniform parts from the first hit to the last.
