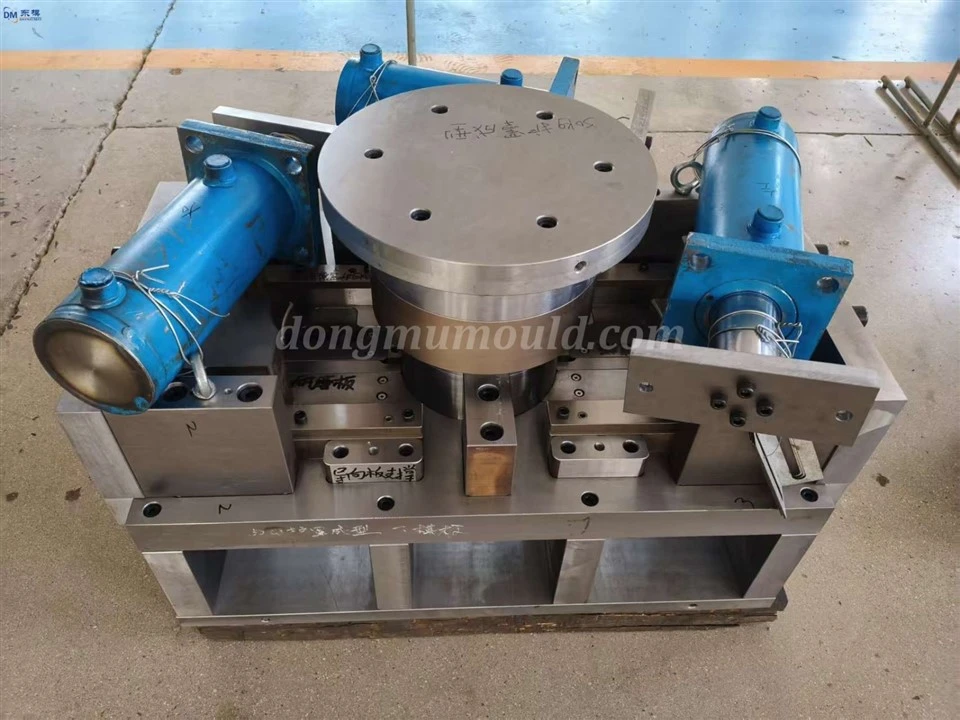

Experienced Metal Mold Maker, Precision Metal Stamping Dies

I. Key Design Considerations for the Guiding System The micron-level stamping die guiding system undertakes the functions of die closing guidance, precision positioning, and load support. During the design phase, the following key control points must be implemented based on the operating conditions:

Structural Rigidity and Operational Stability
Based on the stamping load, strip thickness, and number of stations, determine the specifications and arrangement of guide pillars and bushings to strengthen the rigidity of the die frame guiding area and suppress lateral displacement and elastic deformation during stamping. High-rigidity bearing steel or alloy tool steel should be selected for the guide pillars and bushings, matched with corresponding heat treatment specifications to ensure structural stability under long-term continuous operation.

Micron-Level Guiding Precision Control
The guide mating clearance is strictly controlled within the 1–3μm range, using precision fit tolerances to achieve low-clearance guidance. Optimize the contact state of the guide surfaces, match micro-lubrication conditions, reduce motion friction and wear rate, and avoid precision degradation after long-term use.

Maintainability and Environmental Adaptability
The guiding components adopt a standardized quick-release structure for easy online replacement and maintenance. The guide sleeve inlet is equipped with a dustproof and chip-proof structure to reduce dust and waste entering the mating surface and maintain long-term stable guiding accuracy.

II. Manufacturing Precision Control Implementation Path Achieving micron-level precision in the guiding system relies on full-process process control. Key control points are as follows:
Material and Heat Treatment Control: Guide pillars and guide sleeves are made of high-stability alloy steels such as GCr15 and SUJ2, undergoing vacuum quenching, deep cryogenic treatment, and low-temperature tempering. Hardness is controlled at HRC60–64 to ensure dimensional stability and wear resistance, providing a foundation for precision machining.
Precision Machining Process Control: High-precision internal and external cylindrical grinders and honing equipment are used for precision machining. The cylindricity of the guide pillars and the roundness of the guide sleeve inner hole are controlled within 0.5μm, and the surface roughness Ra≤0.025μm. Key dimensions are monitored and fed back online, and machining parameters are corrected in real time to ensure consistency.

Assembly and Precision Adjustment: During assembly, a lever dial indicator and laser interferometer are used to check the guide parallelism, coaxiality, and mold clearance. Precise clearance control is achieved through selective grinding. The parallelism of the multi-guide pillar structure is adjusted to ensure smooth and unobstructed movement, meeting the requirements of continuous high-speed stamping.
