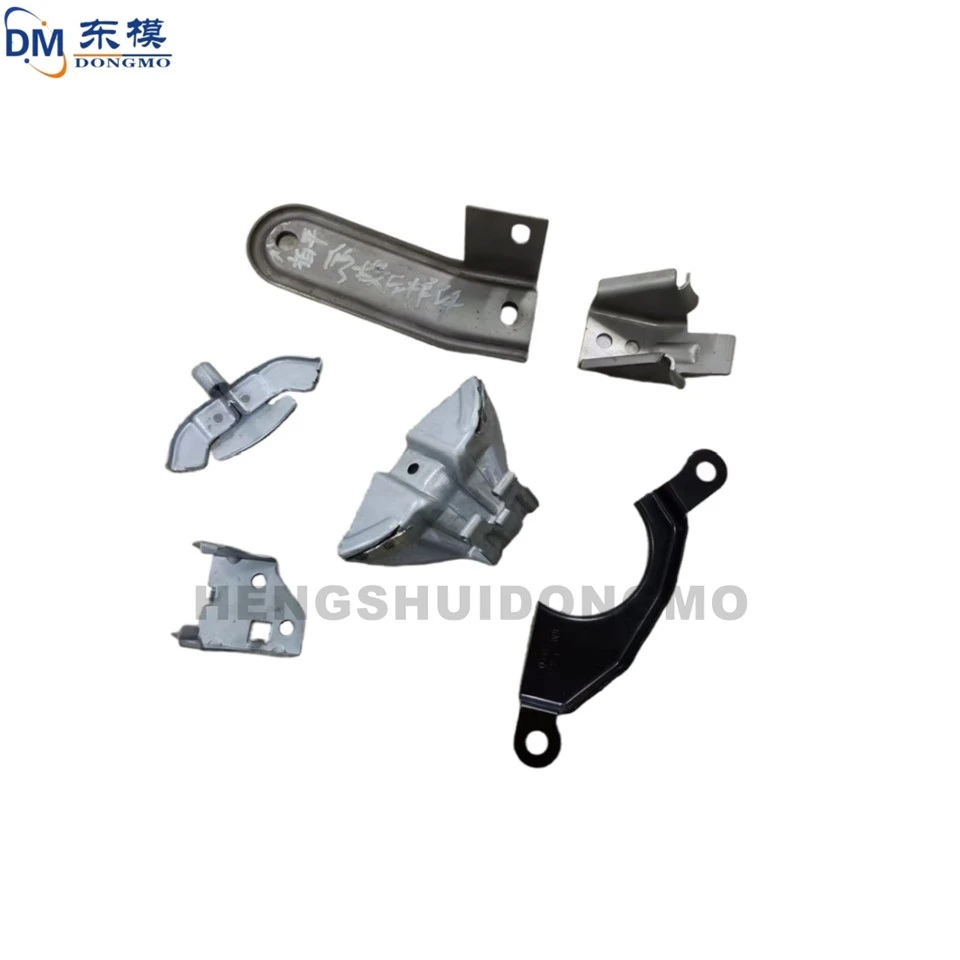

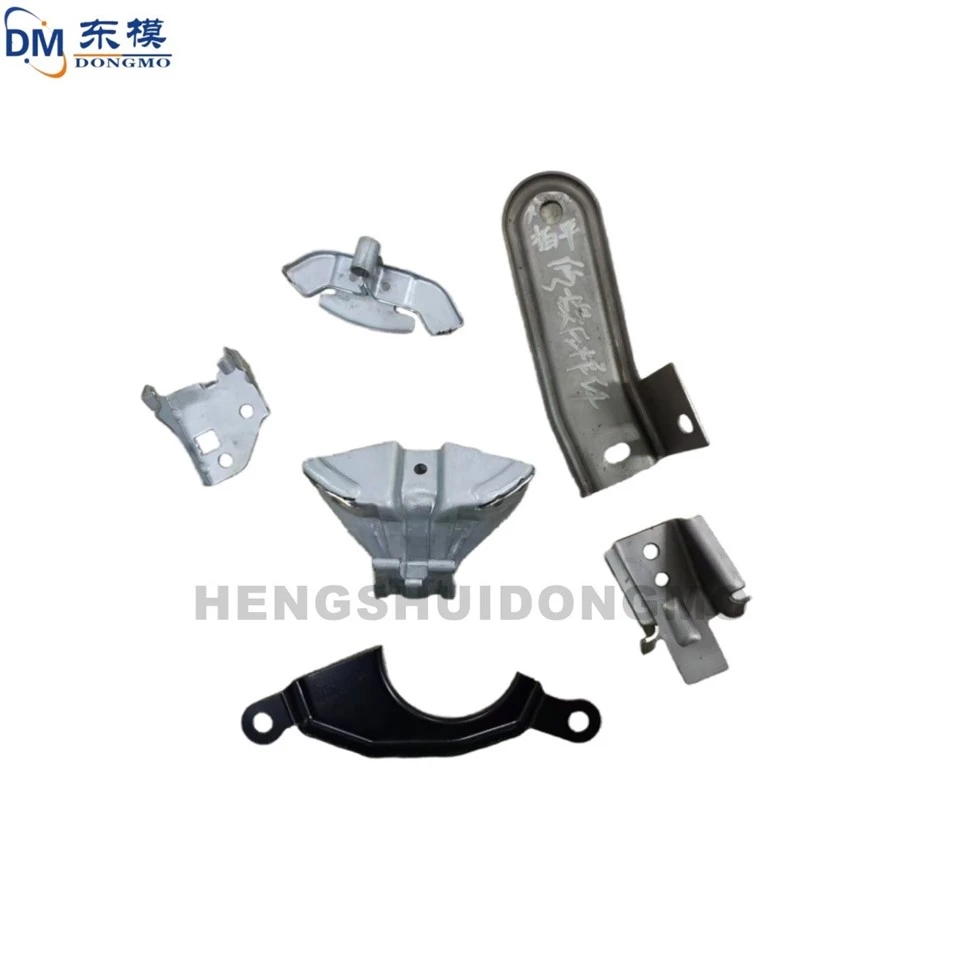

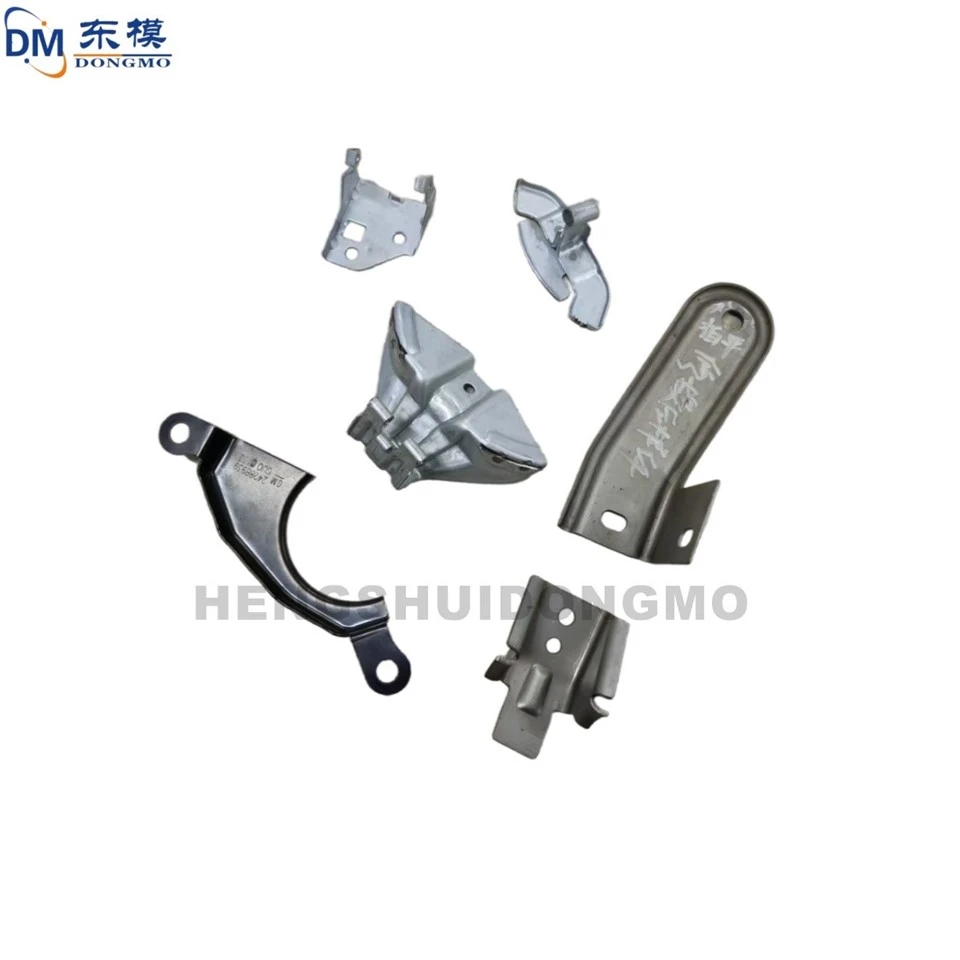

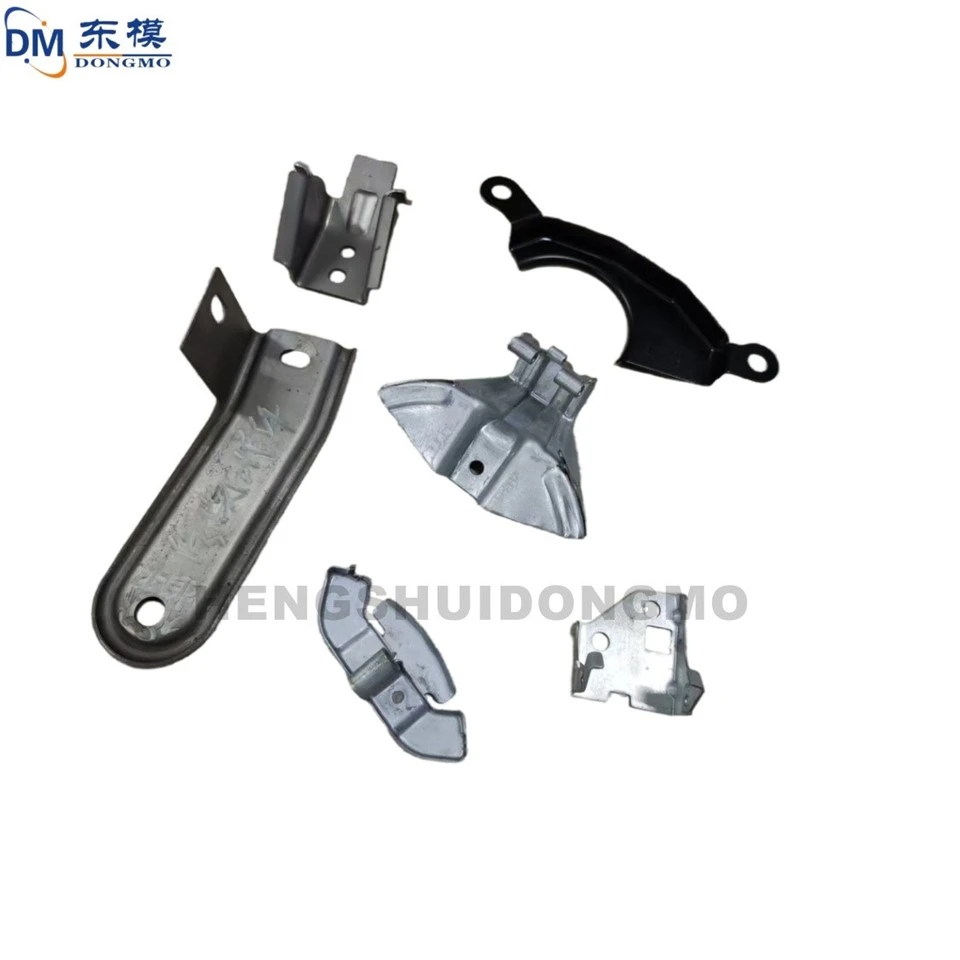

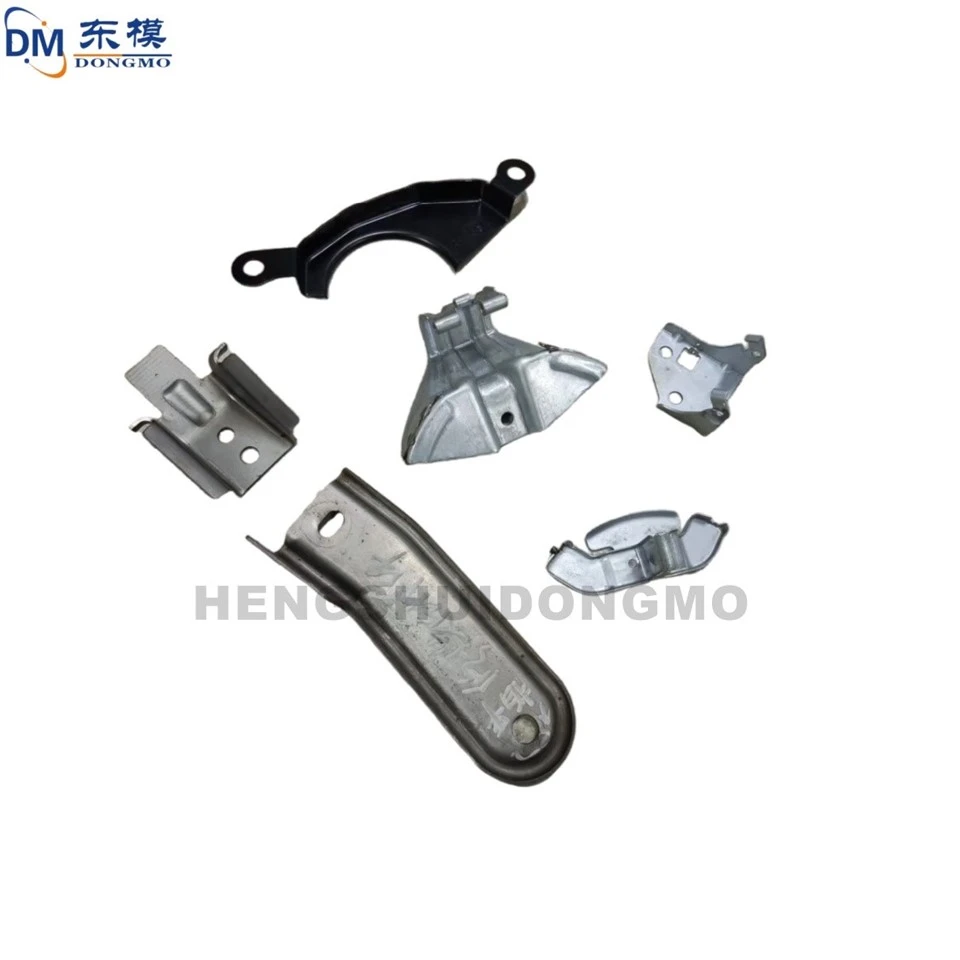

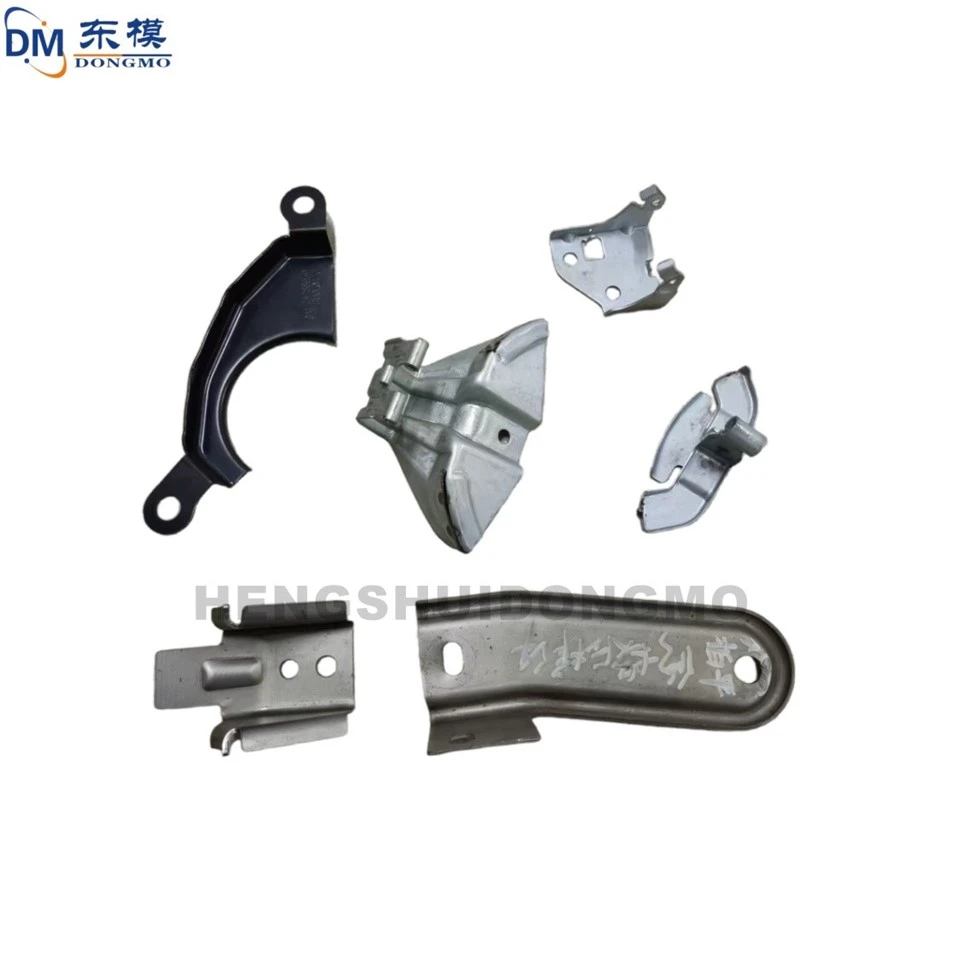

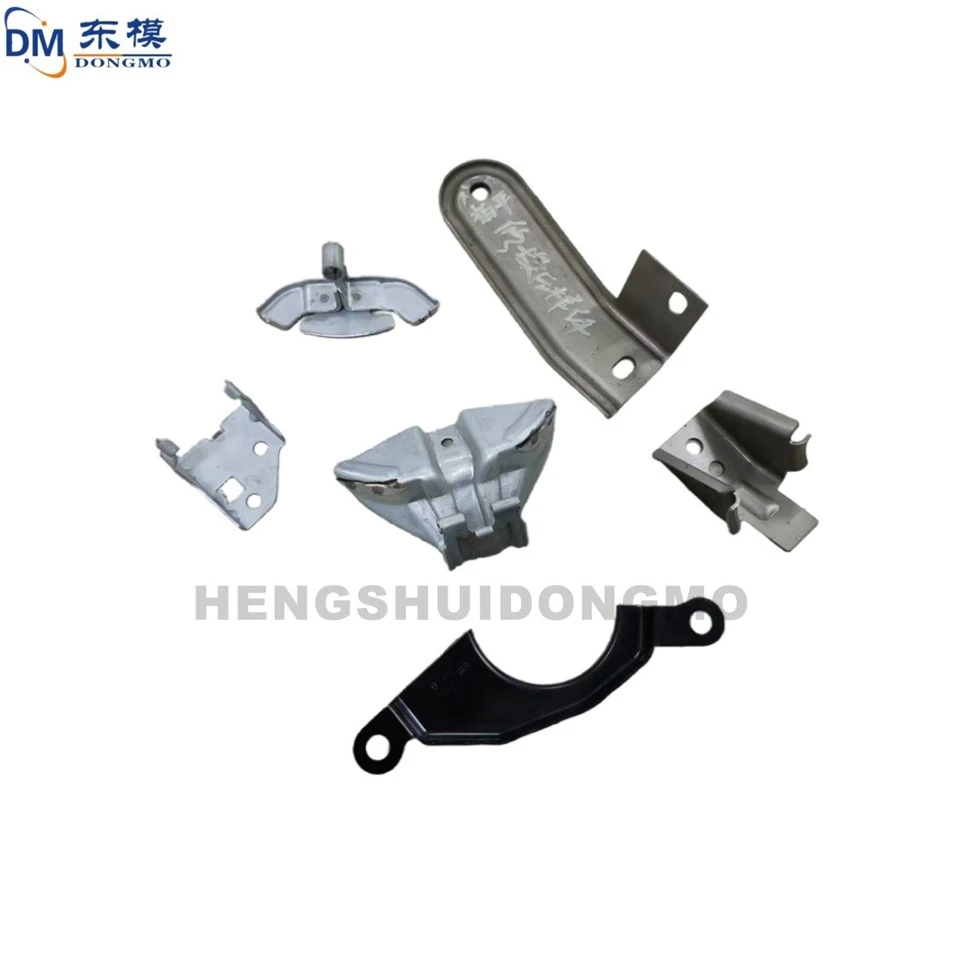

Custom Forming Tool For Automotive Brackets

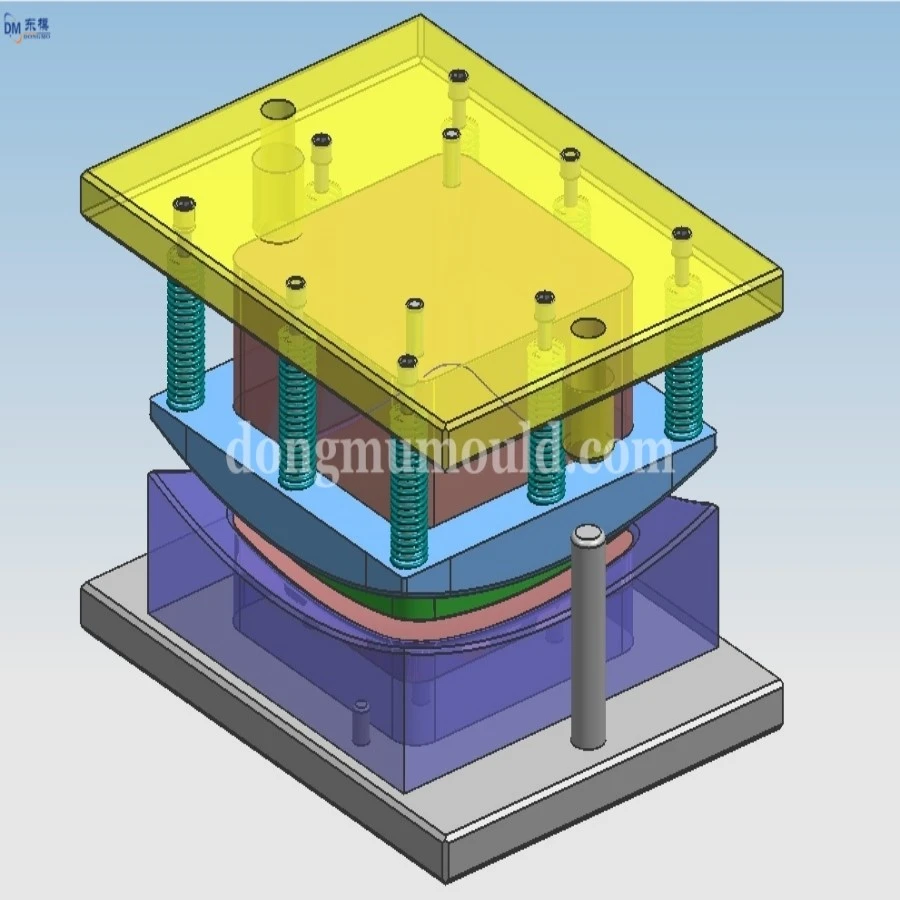

Unlike a progressive die, a forming tool often does multiple shape changes in a single press stroke. Here the metal blank sits on the lower form and the upper tool pushes it into the desired contour. The tool surface is polished and coated to reduce friction, so the metal flows evenly into corners without thinning too much.

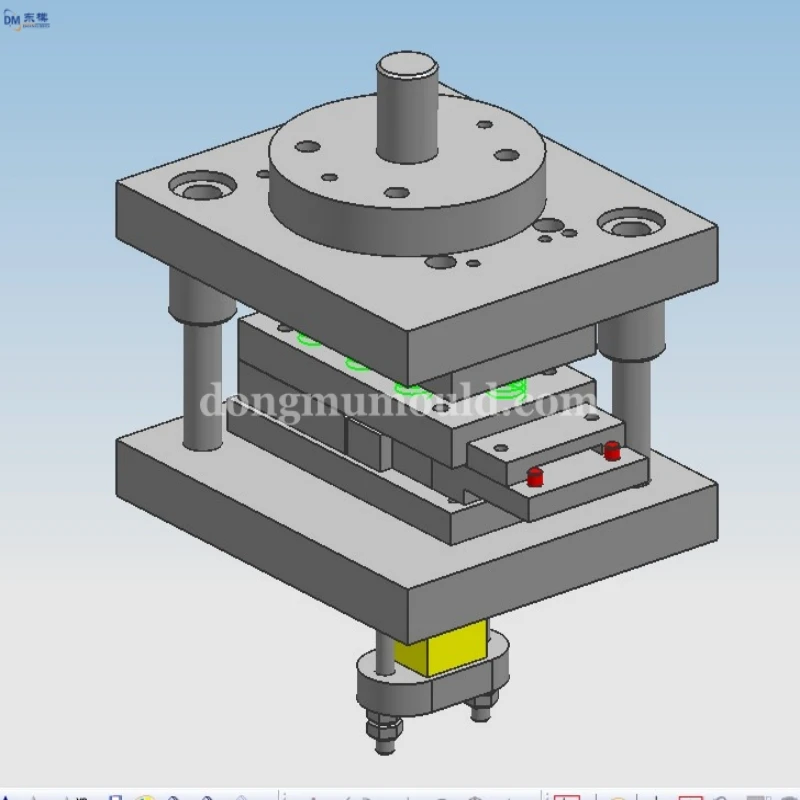

We build the tool blocks from pre-hardened mold steel and match the profile exactly to your bracket drawing. The guide system keeps the halves aligned, and a positive knock-out pin ejects the formed part reliably. This simple structure means you can install the tool on both mechanical and hydraulic presses without special adapters.

Regular checks of the ejector pins and a bit of grease on the guides are all it takes to keep things running. Because it consolidates several manual bending steps, your production becomes faster and parts come out more consistent, with fewer reworks needed before welding or assembly.
