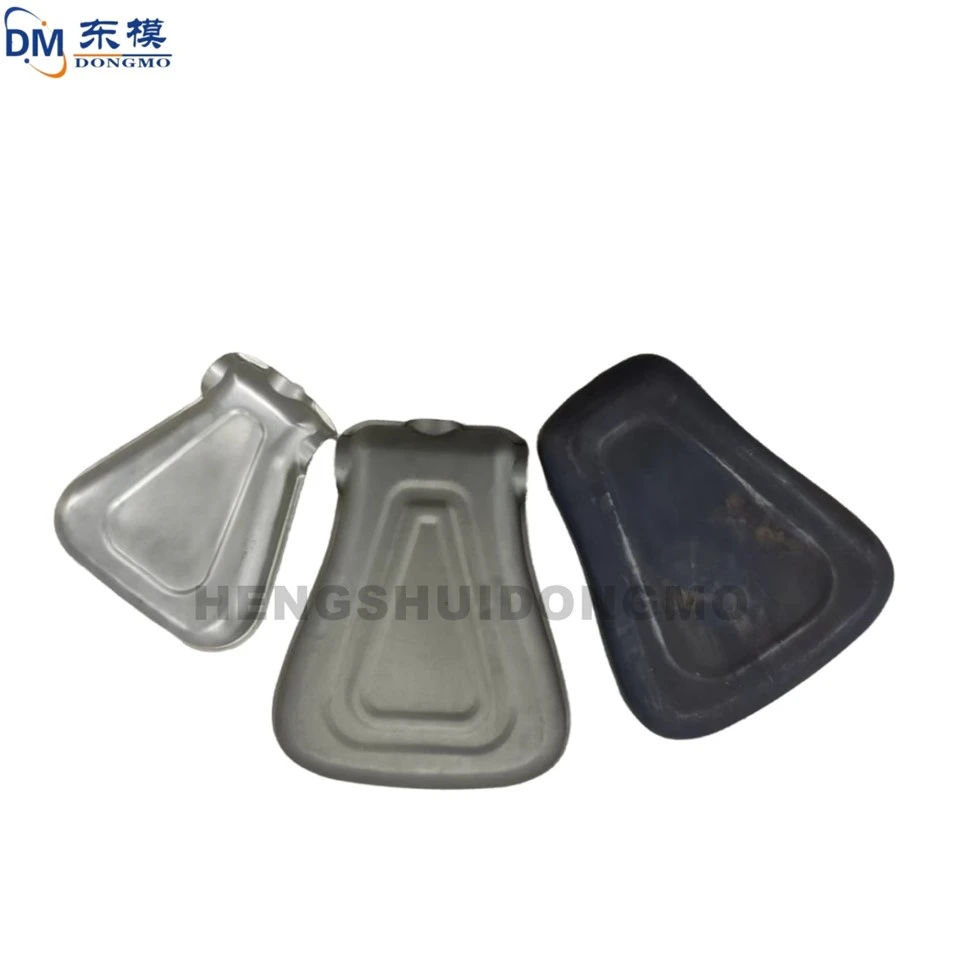

Stamping Dies For Automotive Parts; Deep Drawing Dies For Aluminum Sheets And Alloys

I. Concept and Advantages of Modular Mold Structure
Modular mold structure breaks down the mold into multiple independent, standardized modular units. Through rapid assembly and disassembly, it allows for flexible combination of mold functions. Unlike traditional integrated molds, its practical advantages are as follows:

1. Efficient Mold Changeover: Key modules can be replaced individually without the need for complete mold disassembly and assembly. Using standardized interfaces and positioning devices, traditional mold changeovers take 2-3 hours, while modular molds can reduce this to 15-30 minutes, increasing changeover efficiency by 70%-80% and significantly reducing production line downtime.

2. Flexible Adaptation to Diverse Production: Through modular combinations, mold configurations can be quickly adjusted to adapt to the production of different specifications and product categories. There is no need to redevelop the entire mold set, meeting the needs of multi-variety, small-batch production. Production changeover response speed is improved by over 60%.

3. Reduced Mold Development and Maintenance Costs: Modules are reusable, allowing existing modules to be reused when developing new molds, reducing development costs by 40%-50%. Maintenance only requires replacing damaged modules, eliminating the need for complete mold repair, shortening the maintenance cycle by 80%, and saving 10,000-20,000 RMB in annual maintenance costs per mold set.

4. Improved Product Quality and Stability: Modular design enables precise positioning and assembly, increasing overall mold rigidity by 30%, controlling dimensional accuracy within ±0.01mm, and improving product dimensional consistency by over 95%, reducing scrap and rework rates.

II. Mechanism of Modular Mold Structure Facilitating Rapid Mold Changeover The core of rapid mold changeover is standardization and simplification. Modular molds achieve efficient mold changeover through the following practical techniques:

1. Standardized Interface Design: Adopting a unified module connection method, coupled with quick-locking devices and guide structures, the positioning error during module replacement is ≤0.005mm, eliminating the need for repeated adjustments, simplifying operation, and reducing manual operation difficulty.

2. Modular Component Prefabrication and Spare Parts Management: Each functional module is pre-processed and standardized for storage, establishing a spare parts inventory. When production plans are adjusted, the corresponding module can be directly called upon without temporary processing, reducing waiting time by 3-4 hours per instance.

3. Automated Mold Changing Equipment: Combined with robots and an automated mold changing system, unattended mold changing can be achieved, increasing mold changing speed by 30% while avoiding human error and improving mold changing safety.

4. Digital Mold Management System: Digital tracking of module lifecycle and usage status allows for advance prediction of module wear and tear, ensuring spare parts are in place and modules are in good condition before mold changing, avoiding malfunctions during the process.

III. Comprehensive Benefits of Shortened Production Cycles The rapid mold changing of modular molds not only saves time but also creates multiple practical benefits for enterprises:

1. Improved Production Efficiency: Reduced non-production time during mold changing increases equipment utilization from 65% to over 85%, increasing the average daily capacity of a single production line by 30%, fully releasing the production potential of the equipment.

2. Accelerate new product introduction and market response: Product changeover cycle is shortened by 70%, and new product introduction time is reduced from the traditional 15-20 days to 5-7 days. Enterprises can quickly adjust production plans to respond to changes in market demand and improve agile manufacturing capabilities.

3. Reduce inventory pressure: Enables efficient small-batch, multi-variety production, reducing finished goods and work-in-process inventory by 40%-50%, increasing capital turnover by 30%, and reducing the enterprise's capital occupation costs.
