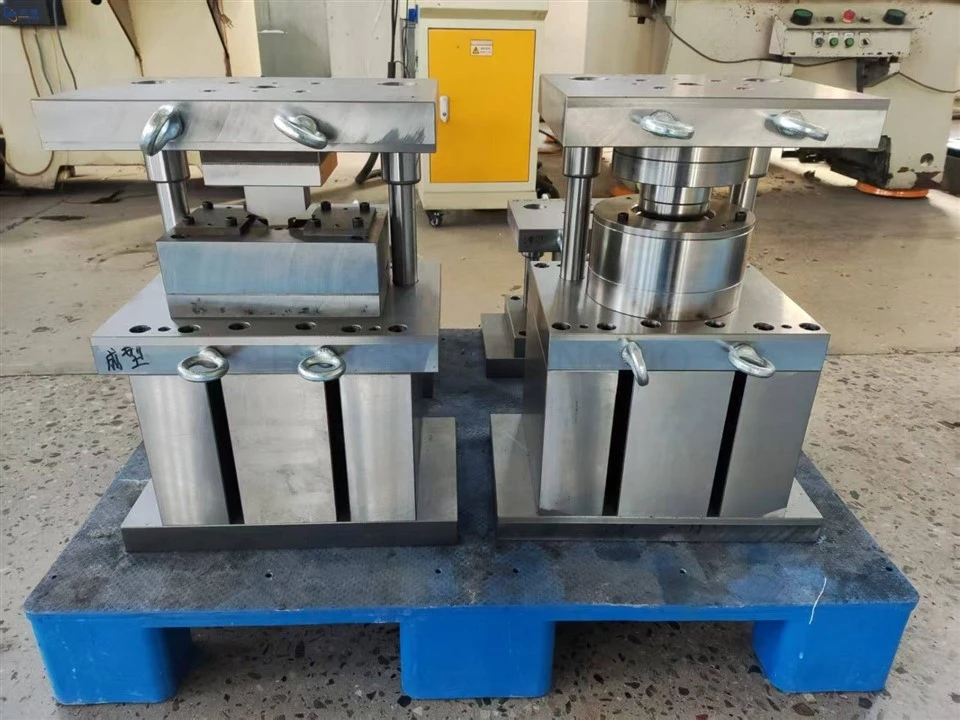

Custom Sheet Metal Stamping Parts, Metal Bending, Stainless Steel And Aluminum Precision Sheet Metal Stamping Dies

Cracking in metal stamping parts is a typical failure defect in the plastic forming process, directly leading to part scrap, significantly reducing production line yield, and extending production cycles. Therefore, identifying its root causes is of great guiding significance for improving product quality and production efficiency. The causes of cracking in stamping parts are complex, but can be summarized into three main dimensions: intrinsic material properties, process parameter matching, and equipment and mold conditions.

First, the intrinsic material properties are the core foundation determining the forming limit. Mechanical indicators such as elongation, yield strength ratio, and work hardening index directly determine the material's plastic deformation capacity. When the local tensile stress exceeds the bearing threshold corresponding to the material's ultimate elongation during forming, necking will occur, ultimately leading to cracking. Simultaneously, non-metallic inclusions, component segregation, surface micro-scratches, and anisotropy introduced by rolling within the raw material all become natural stress concentration sources, significantly weakening the material's actual forming limit. Therefore, it is necessary to strictly select suitable sheet metal with uniform mechanical properties and few internal defects to avoid cracking risks from the source.

Second, the matching of process parameters directly regulates the stress-strain distribution during the forming process. Improper settings of stamping force, stamping speed, and blank holder force can lead to an imbalance in material flow resistance, causing localized stress overload. Insufficiently small transition radius of the die surface and drawing coefficients exceeding the material forming limit can cause severe stress concentration at corners. Poor lubrication increases interfacial friction, hindering uniform material flow and exacerbating the risk of localized cracking. Optimizing process parameter windows, adjusting process layout, and improving lubrication can effectively balance stress distribution in the deformation zone, ensuring smooth material flow and reducing the probability of cracking from a process perspective.

Furthermore, the service condition of equipment and dies directly constrains forming quality. Uneven punch-die clearance, die edge wear, and surface scratches can lead to asymmetrical stress on the blank, causing uneven localized deformation. Deviated parallelism of the press slide and decreased equipment precision can cause uneven load distribution during stamping, further exacerbating localized stress concentration. Regular precision inspection and repair of dies, and calibration and maintenance of stamping equipment can ensure uniform stress during forming, suppressing cracking defects from an equipment perspective.
