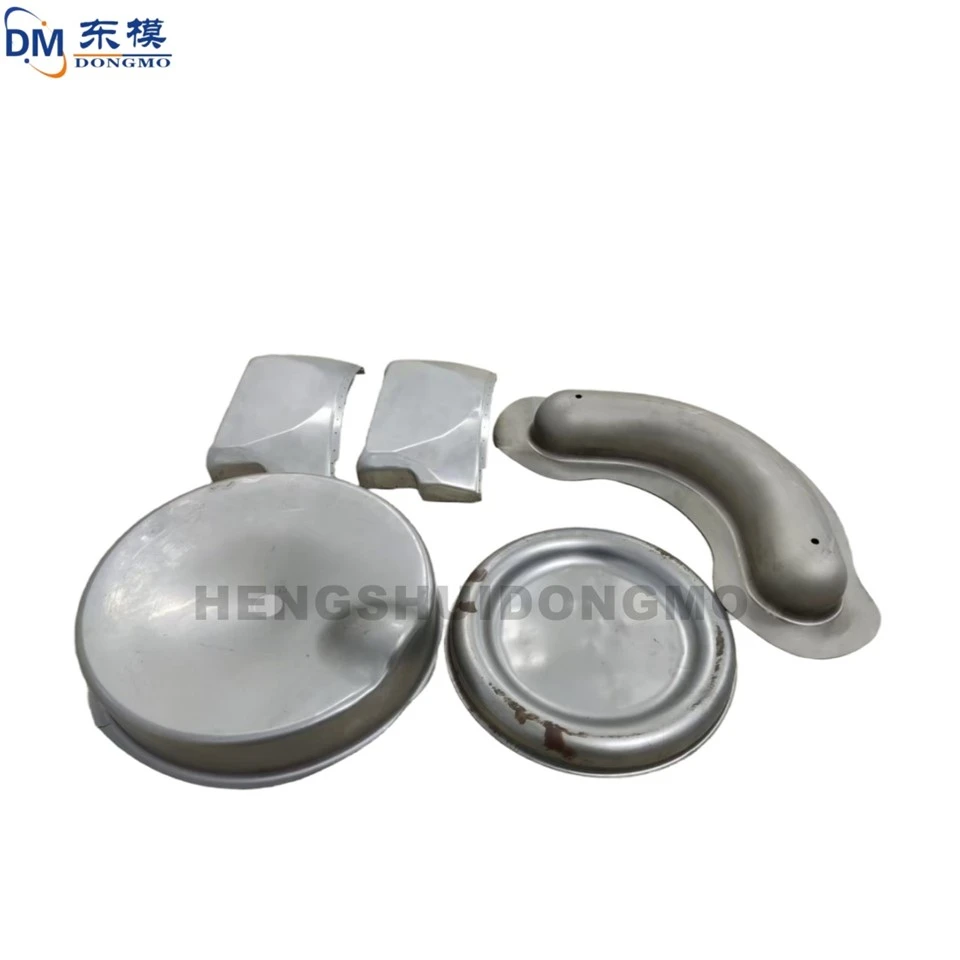

Deep Drawing Stamping Parts Of Aluminum Sheet; Progressive Stamping Dies For Sheet Metal

I. Core Contents of Small-Batch Stamping Part Trial Die Specification

1. Preliminary Preparation

- Material Selection and Inspection: Select suitable metal materials according to design requirements, conduct chemical composition and mechanical property testing to ensure materials meet technical standards.

- Die Design Verification: Use CAE simulation technology to simulate and analyze the die structure and stamping process, predict potential forming problems, and optimize the design scheme in advance.

- Equipment Debugging: Ensure the stamping press and auxiliary equipment are in good operating condition and meet the technical parameters required for trial die making.

2. Trial Die Execution

- Installation and Calibration: Strictly follow the process documents to complete die installation and equipment parameter settings, and conduct machine accuracy calibration.

- First Piece Trial Production: Keep detailed records of the first piece, focusing on dimensional accuracy, surface quality, and deformation, and adjust process parameters promptly.

- Continuous Trial Stamping: Complete a specified number of continuous trial stampings, observe the workpiece quality stability and die performance changes, and predict die life.

- Quality Inspection: Use precision equipment such as a coordinate measuring machine to comprehensively inspect the trial pieces to ensure they meet technical drawings and customer requirements.

3. Trial Mold Review and Confirmation

- Organize trial mold review meetings to summarize process parameters, trial mold quality data, and on-site feedback to determine whether mass production conditions are met.

- Develop improvement plans for problems identified during the trial mold process, promoting mold optimization and process improvement.

II. Advantages of Standardized Trial Molds in Improving Production Efficiency

- Improved Product Quality: Standardized trial molds ensure the precision and stability of stamped parts, guaranteeing product compliance with design standards and improving finished product quality.

- Shortened Development Cycle: A scientific trial mold process accelerates mold acceptance efficiency, shortening the cycle from development to mass production.

- Reduced Production Costs: Reduces mold rework frequency and material waste, improves resource utilization, and enhances corporate economic benefits.

- Enhanced Market Competitiveness: Efficient and precise trial mold management improves the company's responsiveness to customer needs and enhances market recognition.
