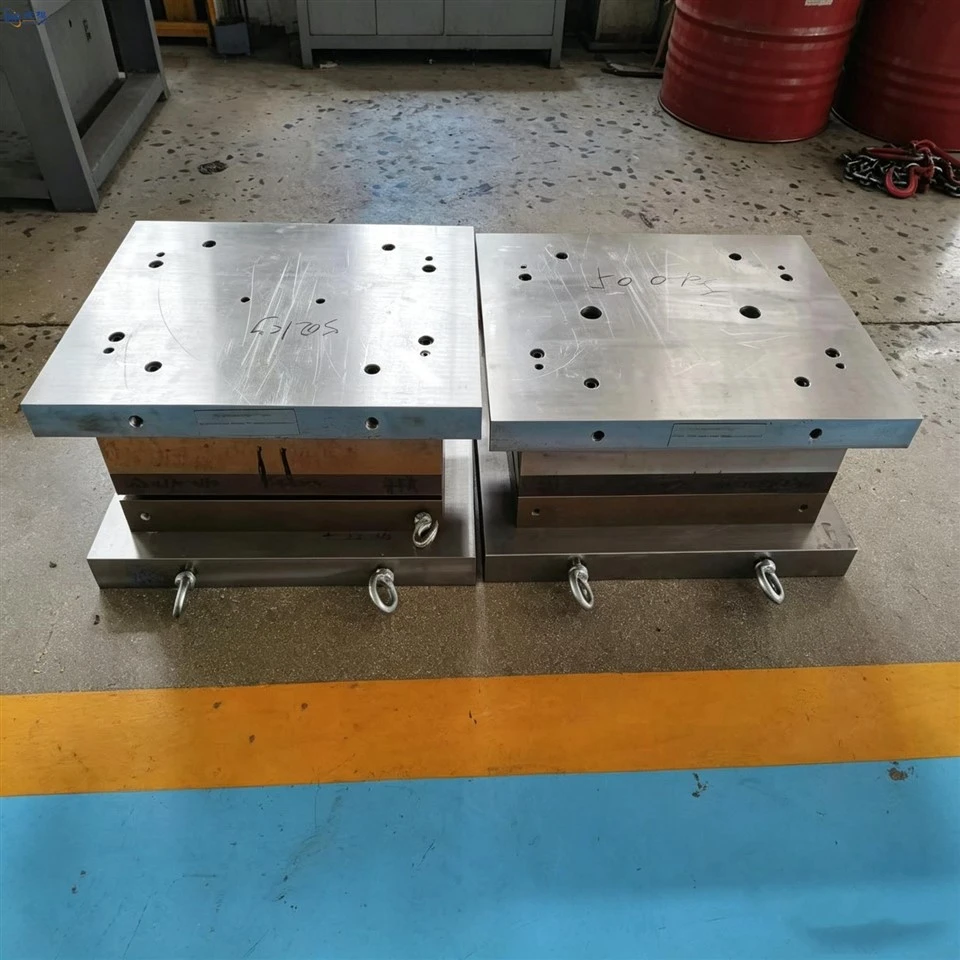

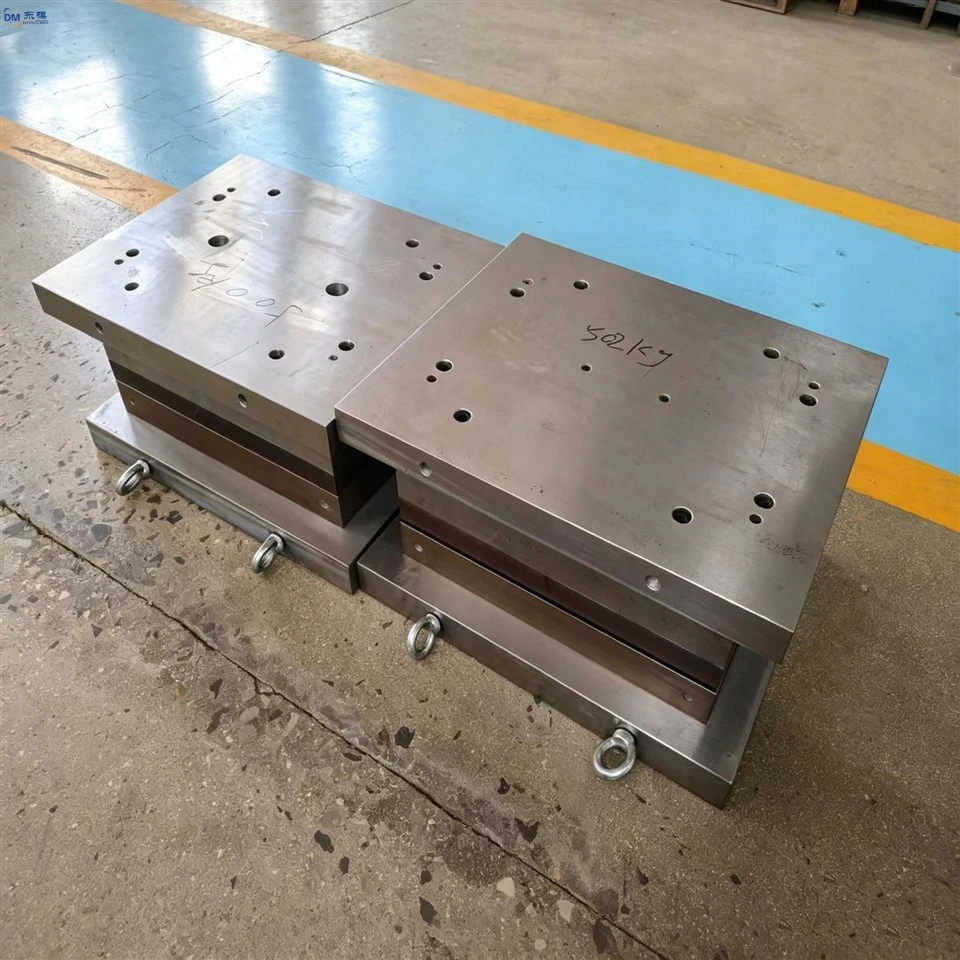

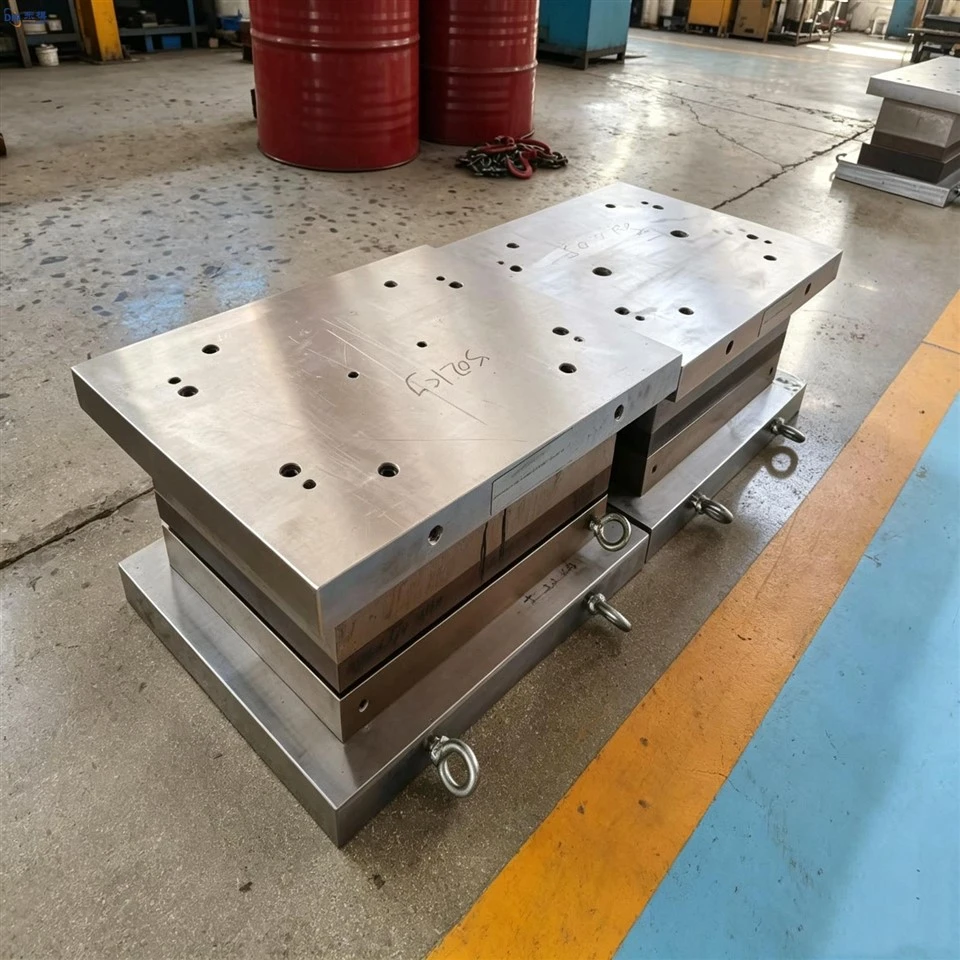

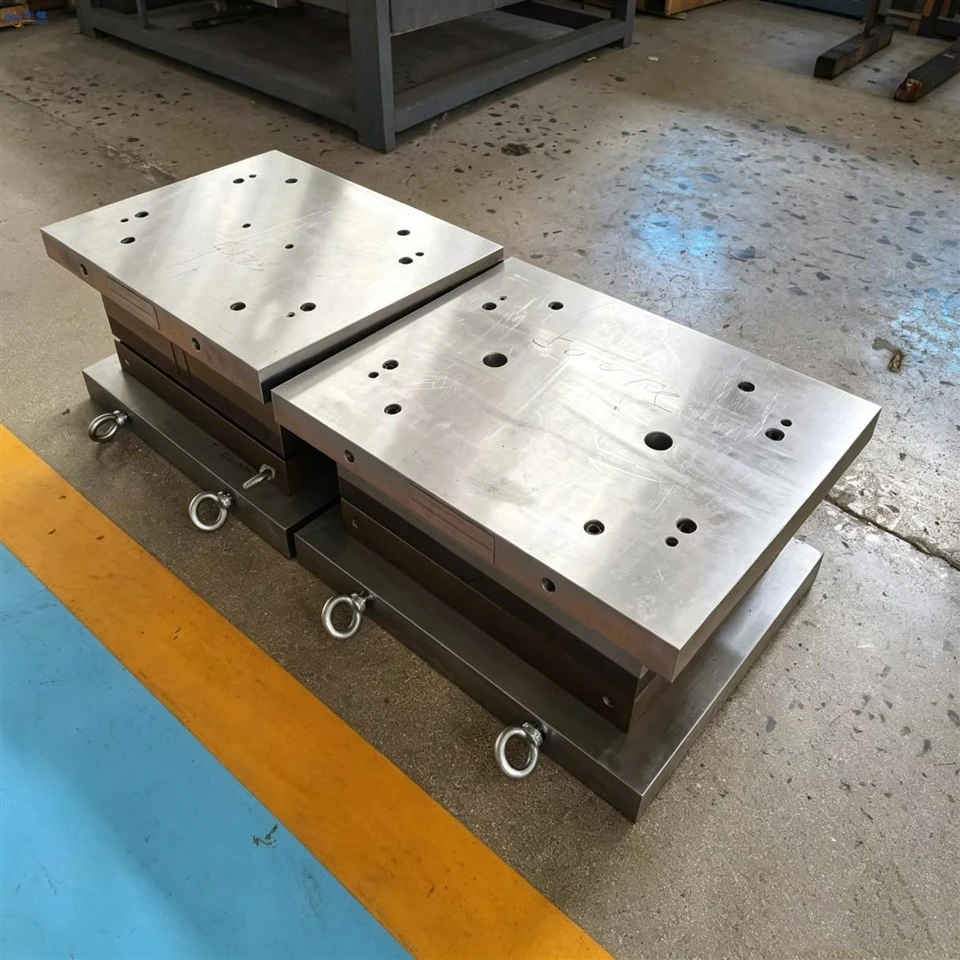

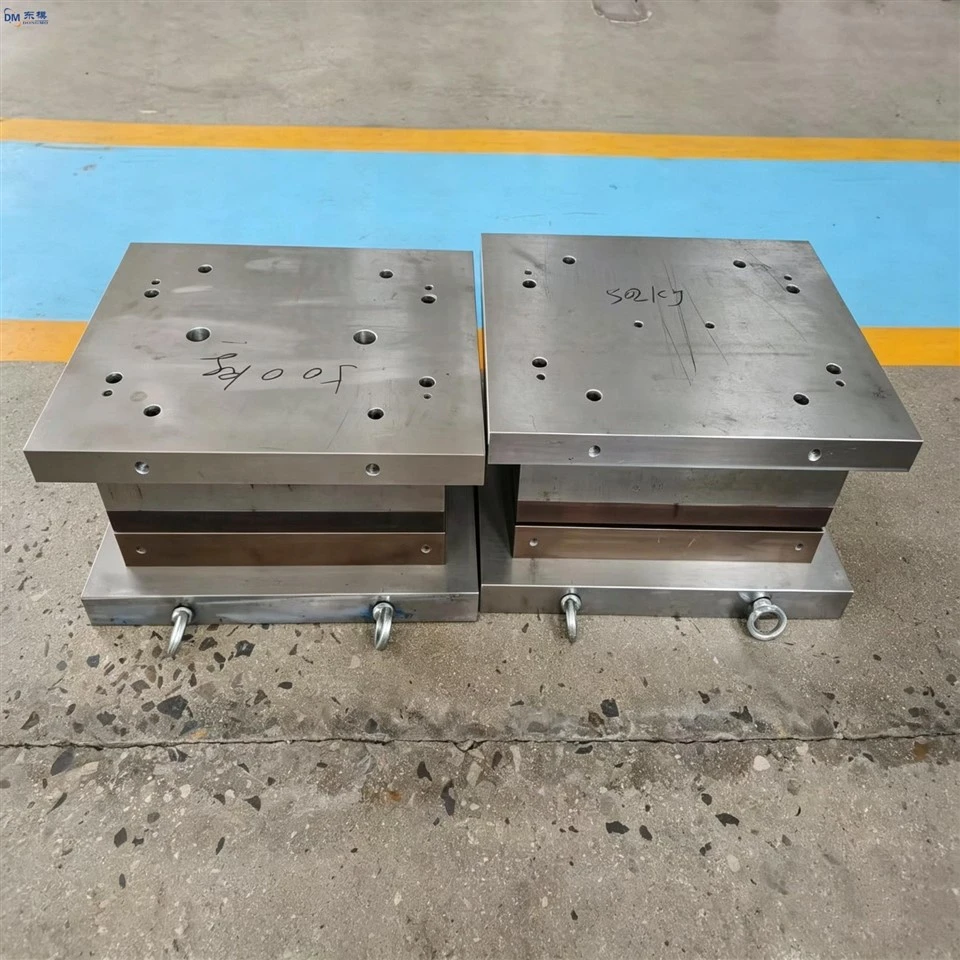

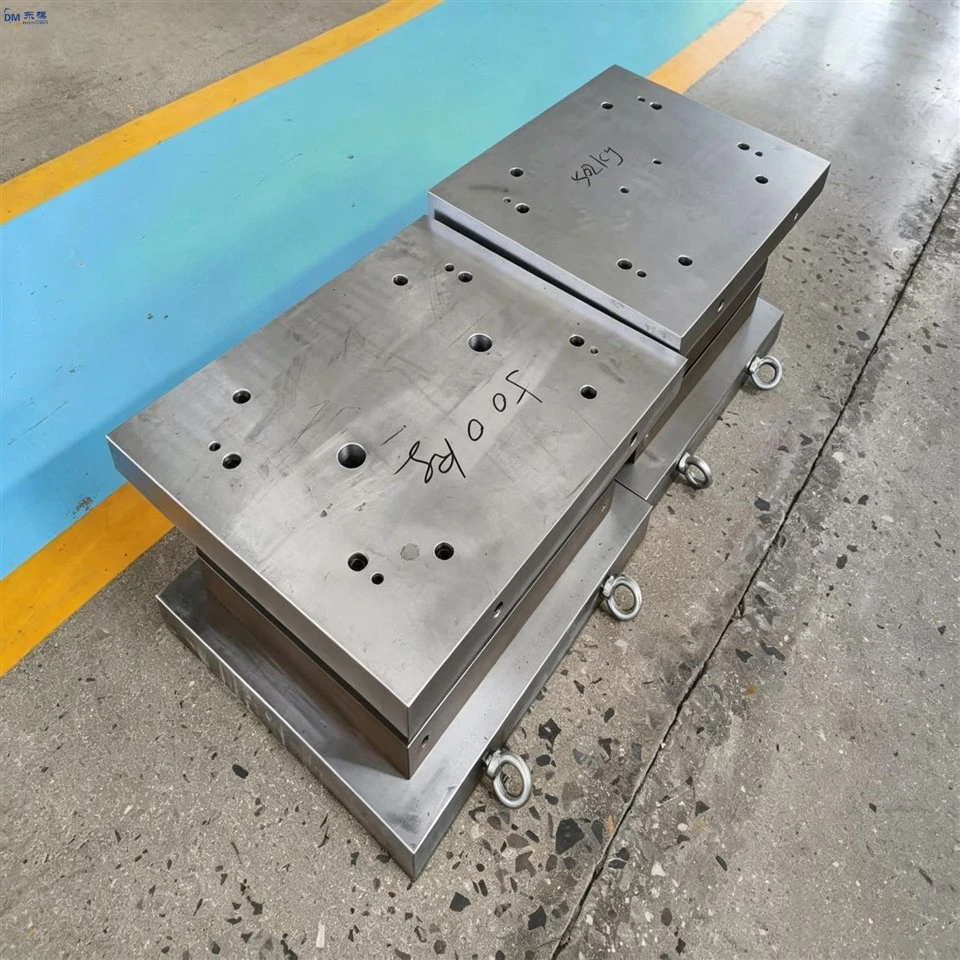

Deep Draw Die For Industrial Machine Tool Housings

Product Details:
If you manufacture protective covers for CNC machines or hydraulic presses, this deep draw die gives you the shell shape in one operation. You place a flat metal blank on the die, the press ram comes down, and the blank is gradually stretched into a box or cylindrical housing. The process is clean, without a lot of intermediate steps.

We engineer the punch nose radius and the die entry profile to let the metal flow smoothly, preventing cracks and wrinkles. The die body is machined from thick tool steel plate, then coated to reduce friction. This means less lubrication and a longer life for the forming surfaces.
Because the drawn shell maintains consistent thickness, you get stronger covers that fit perfectly on the machine tools. Fewer rejects mean you can fulfill large orders faster. Plus, it works with both hydraulic press machines and heavy mechanical presses, so you can drop it into your existing line without massive changes.
