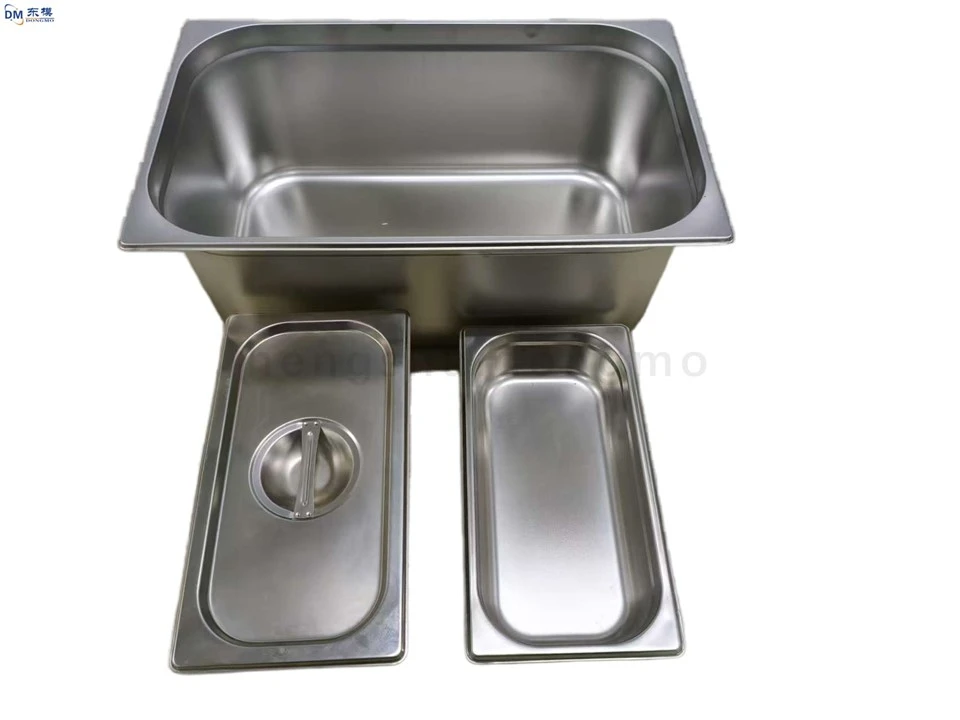

Stainless Steel Stretching Mold For Canteen Sinks And Vegetable Containers

Progressive dies, as a highly efficient form of stamping die, can complete multiple processes, including blanking, bending, stretching, and forming, in a single stamping stroke through the coordinated operation of multiple stations, thereby greatly improving production efficiency and product consistency. For irregularly shaped small parts, the rational application of progressive die technology and its targeted design optimization can not only achieve large-scale, high-precision production but also effectively reduce unit production costs, giving enterprises a competitive edge in the fierce market.

To optimize the design of progressive dies for irregularly shaped small parts, the primary task is to thoroughly analyze the geometric characteristics and process requirements of the parts. Each irregularly shaped small part has its unique shape, size, and precision requirements. Designers need to accurately identify the key parts and processing difficulties of the parts through detailed drawing analysis, 3D modeling, and processability evaluation. For example, for parts with complex curved surfaces or microstructures, special forming processes or auxiliary devices may be required to ensure that the material deforms uniformly during progressive die stamping, achieving the expected shape and precision.

Material selection is also an important aspect that cannot be ignored in the optimization of progressive die design for irregularly shaped small parts. Different materials possess varying mechanical properties, ductility, and surface characteristics, all of which directly impact the stamping performance and lifespan of progressive dies. Therefore, designers need to comprehensively select suitable materials based on the functional requirements of the parts, the operating environment, and the cost budget. This selection, combined with the material's heat treatment process, optimizes the die's hardness and wear resistance, extending its lifespan and reducing scrap rates and maintenance costs due to die wear.

In terms of specific die structure design, innovative design concepts and technologies are constantly emerging. To improve the positioning accuracy and stability of the die, advanced positioning devices and guiding systems, such as precision guide pillars and guide sleeves, can be introduced to ensure that the relative positional accuracy between each station remains within a very small tolerance range, effectively avoiding part defects caused by die misalignment. Simultaneously, for the characteristics of irregularly shaped small parts, designing reasonable layout schemes and waste disposal mechanisms can maximize material utilization, reduce raw material waste, and further lower production costs.
