Multi-Station Metal Punching Tool For Perforated Sheet Fabrication

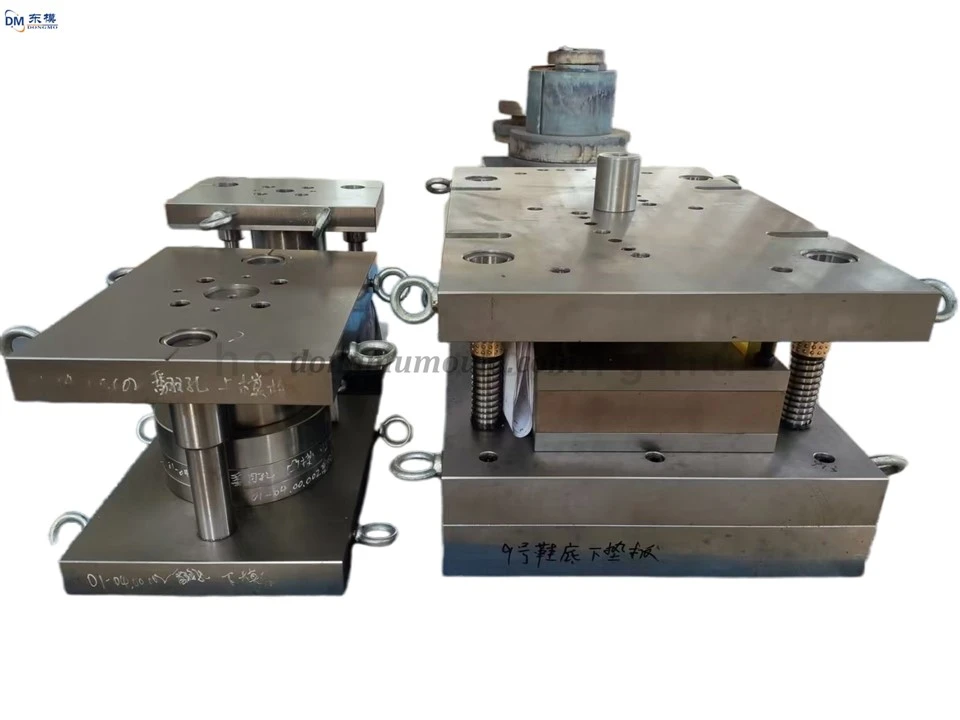

Creating sheets with mixed hole sizes usually needs multiple tool swaps. This punching tool puts stations for round, square, and slotted holes together. The operator simply moves the sheet to the right station following the hole pattern. Because all stations share a common alignment base, the spacing between holes remains accurate, which is critical when the sheet later mates with other parts.

Fitting the tool to a press takes a standard shank and bolts. Slugs fall away through angled exit slots, so jams are rare. When working with mild steel or aluminium, a light spray of lubricant keeps the punches sharp longer. A quick daily look at the stripper springs and cutting edges is enough to catch wear early and avoid rough hole edges on the finished panel.

Related Links

For shops that take on varied fabrication orders, this multi-station tool adds capacity without a large tooling investment. One setup produces many hole shapes, which speeds up small batches and prototype work. The hours saved on changeovers go straight into productive cutting time. With basic care, the tool remains a dependable part of the workshop for thousands of cycles.
