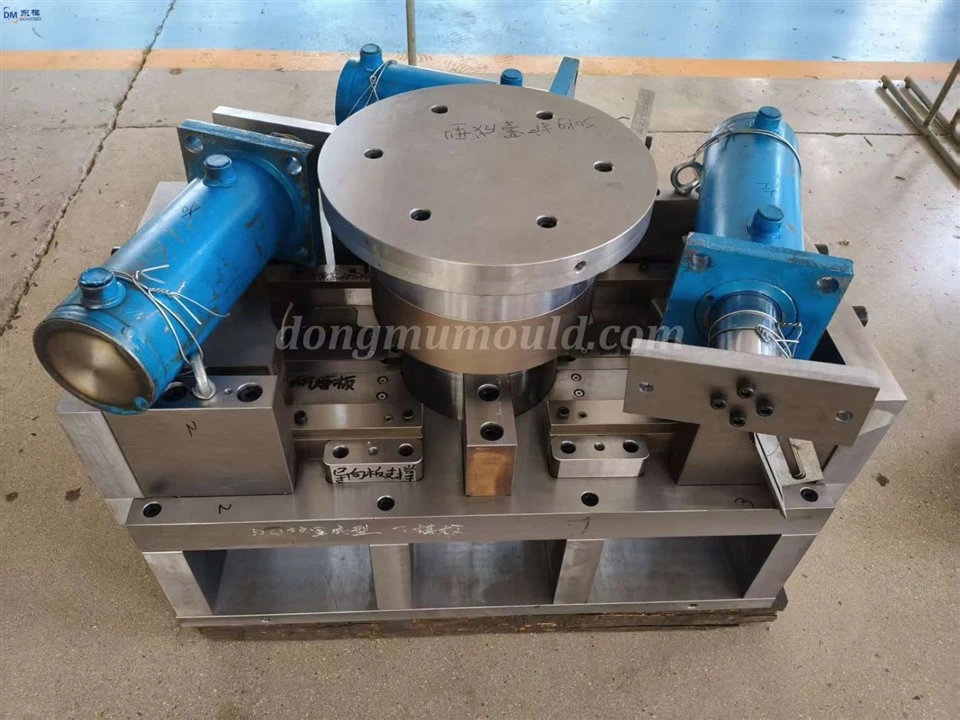

High-Quality Precision Metal Die Design For Custom Stamping Dies

I. Characteristics and Challenges of Dynamic Loads on High-Speed ​​Stamping Dies

High-speed stamping speeds are ≥50 cycles/minute. The die is subjected to blanking force, bending force, and tensile force, simultaneously compounded by impact vibration and thermal stress coupling. The dynamic load changes rapidly and is complexly distributed. Improper load control can lead to dimensional deviations in stamped parts, increased elastic deformation of the die, and a die life reduction of over 30%. Therefore, accurate dynamic load analysis and optimization design are core to the development of high-speed stamping dies.

II. Dynamic Load Optimization Design Strategies

1. Enhanced Die Structural Rigidity: Using finite element analysis software to simulate the dynamic stamping process, the die base and reinforcing rib structure are optimized, and the thickness of key stress-bearing parts is increased to improve overall rigidity and control elastic deformation within 0.01mm. The die is made of H13 and SKD11 high-strength alloy steel, vacuum quenched and cryogenically treated to achieve a hardness of HRC58-62, improving load-bearing capacity and wear resistance, and enhancing the dynamic load-bearing capacity.

2. Optimized Punch and Die Fit Design: The clearance between the punch and die is set at 5%-8% of the material thickness, with an error ≤0.005mm. A progressive blanking design is adopted, with a 0.2-0.3mm transition radius on the punch cutting edge to reduce instantaneous impact load, minimize vibration and shock wave transmission, achieve a smooth load increase, ensure stamping continuity, and prevent die jamming and chipping.

3. Dynamic Stress Distribution Uniformity: A damping rubber pad with a thickness of 5-8mm is installed between the die base and the worktable, or an elastic buffer structure with a buffer stroke of 1-2mm is added to the tail of the punch to improve stress concentration, reducing peak stress by 20%-30%, achieving uniform stamping load distribution, and extending die life.

4. Intelligent Monitoring and Feedback Control: Pressure and vibration sensors are installed at the die punch and die holder to monitor mechanical parameters during the stamping process in real time, and the data is integrated into the intelligent control system. When load fluctuations exceed ±5% or vibration frequency exceeds the standard, the system automatically alarms and shuts down, guiding operators to adjust parameters to ensure the mold is in optimal working condition.

III. Stamping Process Stability Control Methods

1. Process Parameter Optimization: Based on material thickness and hardness, determine the stamping speed to 50-120 times/minute, with stamping force error ≤ ±5% and stroke positioning accuracy ≤ 0.01mm, achieving a smooth transition during the stamping process and avoiding excessive speed leading to load surges and workpiece deformation. Precisely control the stamping rhythm, keeping the mold closing time between 0.1-0.2 seconds to improve process repeatability.

2. Improved Lubrication Conditions: Use a high-speed stamping-specific lubricant, prioritizing low-viscosity water-based lubricants, controlling the coefficient of friction to within 0.1. Equip with an intelligent lubrication system that automatically sprays lubricant according to the stamping cycle, replenishing every 30-50 pieces, reducing frictional resistance and heat generation, stabilizing dynamic loads, protecting the mold surface, and ensuring that the dimensional tolerance of stamped parts is ≤ ±0.02mm with no surface scratches.

3. Material Property Adaptation: Adjust the stamping speed and pressure parameters for workpieces made of different materials such as high-strength steel and aluminum alloys. The stamping speed for high-strength steel is controlled at 50-80 strokes/minute, and for aluminum alloys at 80-120 strokes/minute. Optimize the die clearance and cutting edge design based on the material's plasticity and elasticity to ensure uniform material deformation and avoid abnormal stress.

4. Standardized Operation Management: Provide regular process training to operators, requiring passing an assessment before allowing them to work, thus improving process control and emergency response capabilities. Establish a stamping process monitoring log to record process parameters and die status. Perform a comprehensive overhaul of the die every 100,000 cycles, replacing worn parts to ensure stable and efficient production.
