Product Description
The oil filter is used to remove impurities such as dust, metal particles, carbon sediments and soot particles in the oil to protect the engine.
The oil filter is composed of a shell, a spring, a return valve, a safety valve, a bottom plate, a connecting plate, a sealing ring, etc. The formation of the metal shell requires a stamping die.
We specialize in customized auto oil filter shell drawing mold, the life of the mold manufactured in 300,000-500,000 strokes, the material is made of high-quality die steel, manufacturing and assembly process, by our designers tracking the whole process to ensure that you give high-quality mold.

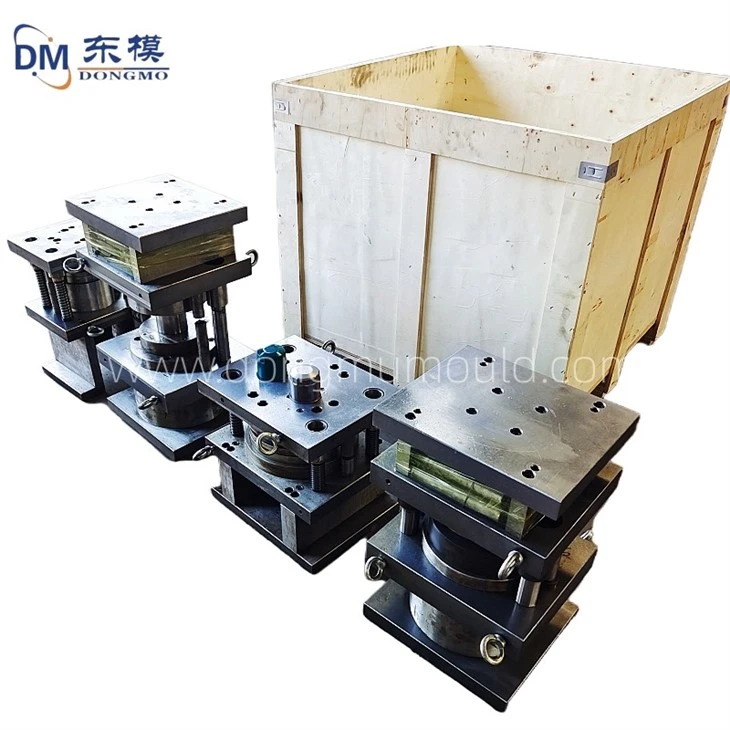

| Product name | Oil filter housing drawing die |
| Mold material | CR12MOV ,DC53 Or according to customer requirements |
| Apply | Filter housing production |
| Die life | 300,000 to 500,000 times |
| Certificate | ISO9001 |
| Die heat treatment | Vacuum treatment |
| Mold manufacturing cycle | Mold manufacturing cycle |
Detailed Photos
Company Profile
Our services
We have our own equipment for the entire production process, from mold design, development, processing, assembly to surface coating. We have a highly qualified team of engineers to provide you with the most practical and cost-effective solutions. Our workers are experienced and our quality control is strict. We have the ability to provide customers with high quality and low price products. Aligned with buyers with the same vision of delivering exceptional quality, this has contributed to our success. Honesty is also our best policy. Our philosophy is simple: We deliver on our promises.
If you are looking for a manufacturer to customize your auto parts mold or parts processing, then please firmly choose us!
We provide free technical support for your project. When you contact us, you can be assured of an experience that exceeds your expectations and makes you happy with your choice.
Company equipment
Our company has accumulated rich experience in sheet metal drawing, punching, bending, forming and other difficult mold manufacturing. There is enough equipment to complete the product processing and manufacturing.
Mold processing equipment: CNC CNC machining center, CNC wire cutting machine, CNC forming machine, turning, milling, grinding and other high-precision processing equipment.
Stamping processing equipment :630T, 500T, 315T, 200T, 160T, 100T tensile forming hydraulic press and various large, medium and small tonnage presses.
Cutting equipment :2D CNC laser cutting machine, 3D CNC laser cutting machine.
Sample display
Why us?
1 . Good material
2. High accuracy. Accuracy can reach 1-4 μ m,Ra 2 μ m.
3. Reasonable design. Accurate layout is conducive to production and saving of raw materials.
4. Reasonable structure and convenient access. Good for maintenance and repair
5. Reasonable process arrangement
6. Correct heat treatment
7. The most appropriate part clearance
8. Standard parts shall be famous brands.
9. Strict Qc quantity control.
10. Timely delivery and best service
