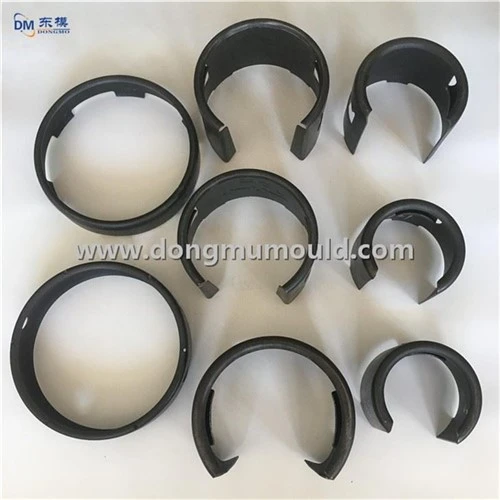

LPG Base, Handle Deep Drawings Dies, Metal Stamping Die

I. Basic Overview

Cold Stamping: Stamping metal sheets at room temperature (20-30℃), mainly used for processing thin sheets of 0.1-3.0mm thickness. It can form complex-shaped parts, with high dimensional accuracy and no oxide scale on the surface.

Hot Stamping: Heating the metal material to 850-950℃ (above the material's recrystallization temperature) before stamping. Suitable for plates thicker than 3.0mm and high-strength steel (such as 1500MPa grade hot-formed steel). It requires less stamping force and results in less die wear.

II. Comparison of Process Characteristics

1. Temperature Conditions: Cold stamping requires no heating device and can be operated with a regular punch press. Equipment investment is low, the process is simple, and no additional temperature control is needed. Hot stamping requires a heating furnace and heat preservation device. Precise control of the heating temperature (error ±10℃) and holding time (10-20 minutes) is required. Equipment investment is high, and technical management requirements are strict.

2. Material Plasticity and Formability: Cold stamping materials have low plasticity and are only suitable for ordinary cold-rolled thin sheets such as SPCC and DC01. They can form parts with clear details, require no heating, and are energy-efficient. Hot stamping increases material plasticity through high temperatures, allowing the processing of high-strength materials such as DP steel and boron steel. It can form complex curved surfaces and deep-drawn parts, is not limited by material strength, and has strong design adaptability.

3. Product Performance: Cold-stamped parts have a smooth surface, Ra≤1.6μm, dimensional tolerances controlled within ±0.01-0.03mm, good stability, and are suitable for products with high appearance requirements (such as appliance housings and electronic components). Hot-stamped parts, after forming and quenching, can achieve a hardness of HRC45-55, significantly improving tensile strength. This allows for a balance between lightweight and high strength, and is mainly used in automotive safety structural components (such as door anti-collision beams and A-pillars).

4. Production Efficiency: Cold stamping presses can reach speeds of 10-200 strokes per minute per unit, with no heating or cooling time, making them suitable for large-scale continuous production and flexible changeover. Hot stamping requires 3-5 minutes per part (including heating, stamping, and cooling), resulting in a slower production pace, but it can directly produce high-performance parts, reducing subsequent heat treatment processes.

III. Application Scenarios and Development

Cold stamping is mainly used in home appliances, electronics, and general automotive parts, focusing on efficient, low-cost, and high-precision mass production; hot stamping is mainly used in new energy vehicles and aerospace, focusing on the production of high-strength, lightweight parts. The two complement each other, covering various metal stamping needs.

Currently, both cold and hot stamping are equipped with automated loading and unloading systems, intelligent temperature control and monitoring equipment. Cold stamping improves the stability of mass production, while hot stamping optimizes heating and cooling efficiency and reduces energy consumption. In the future, both will further adapt to the processing needs of new materials, combining digital technology to improve production efficiency and product consistency.
