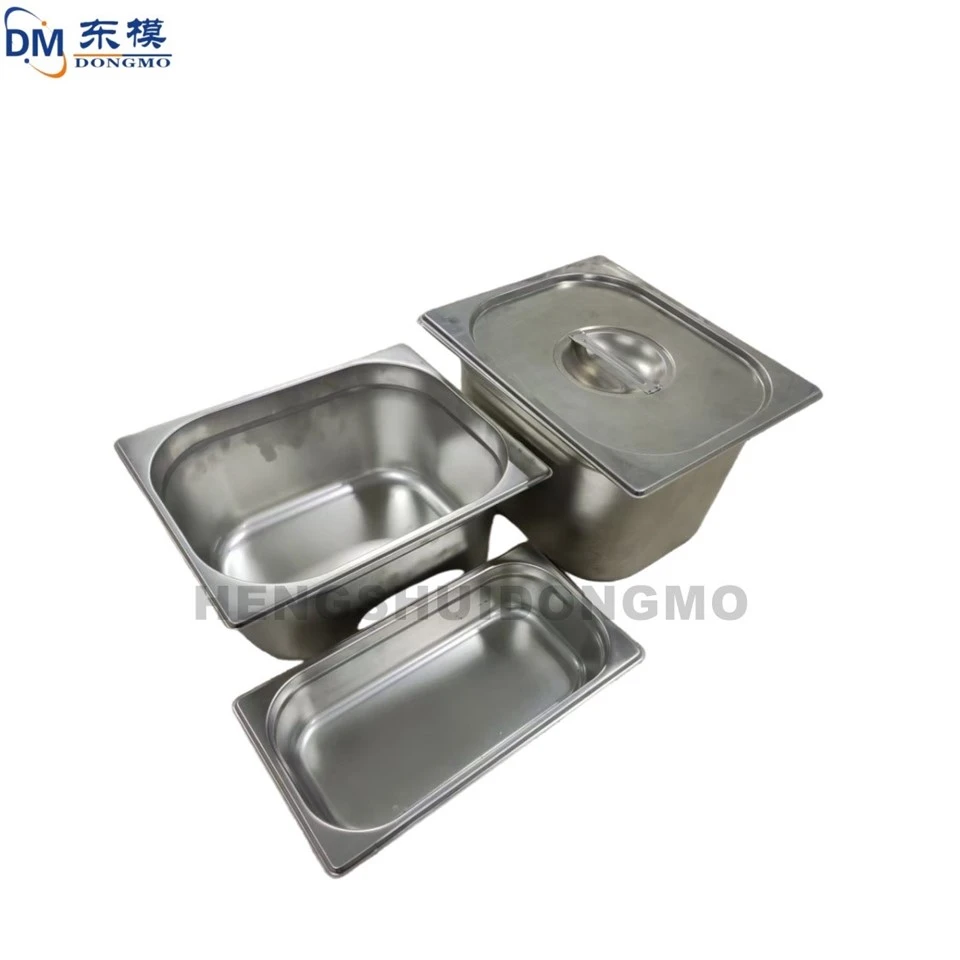

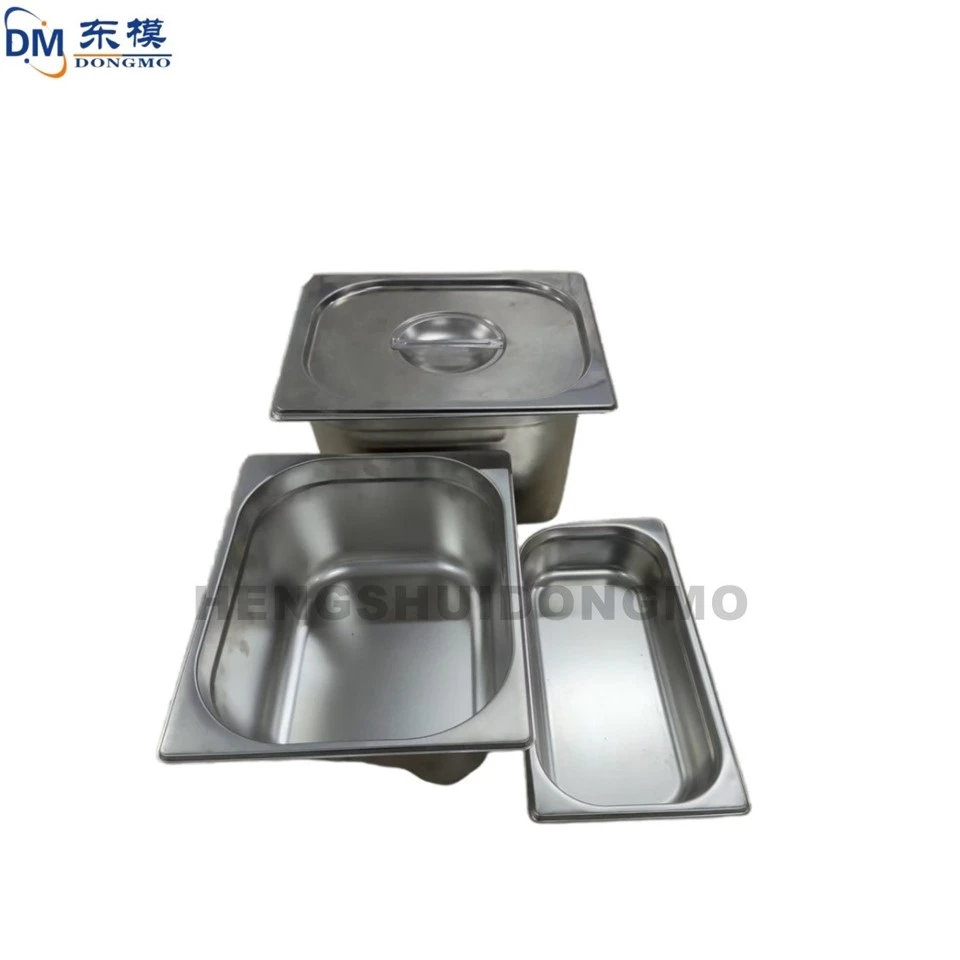

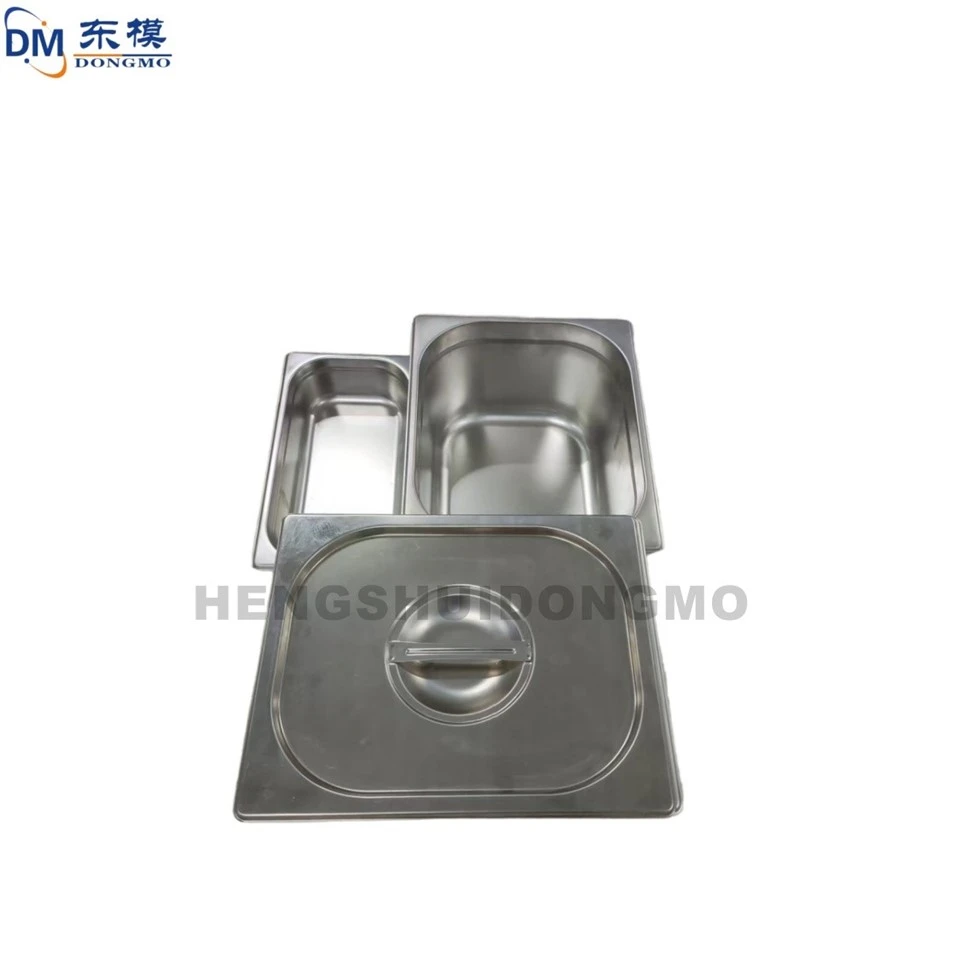

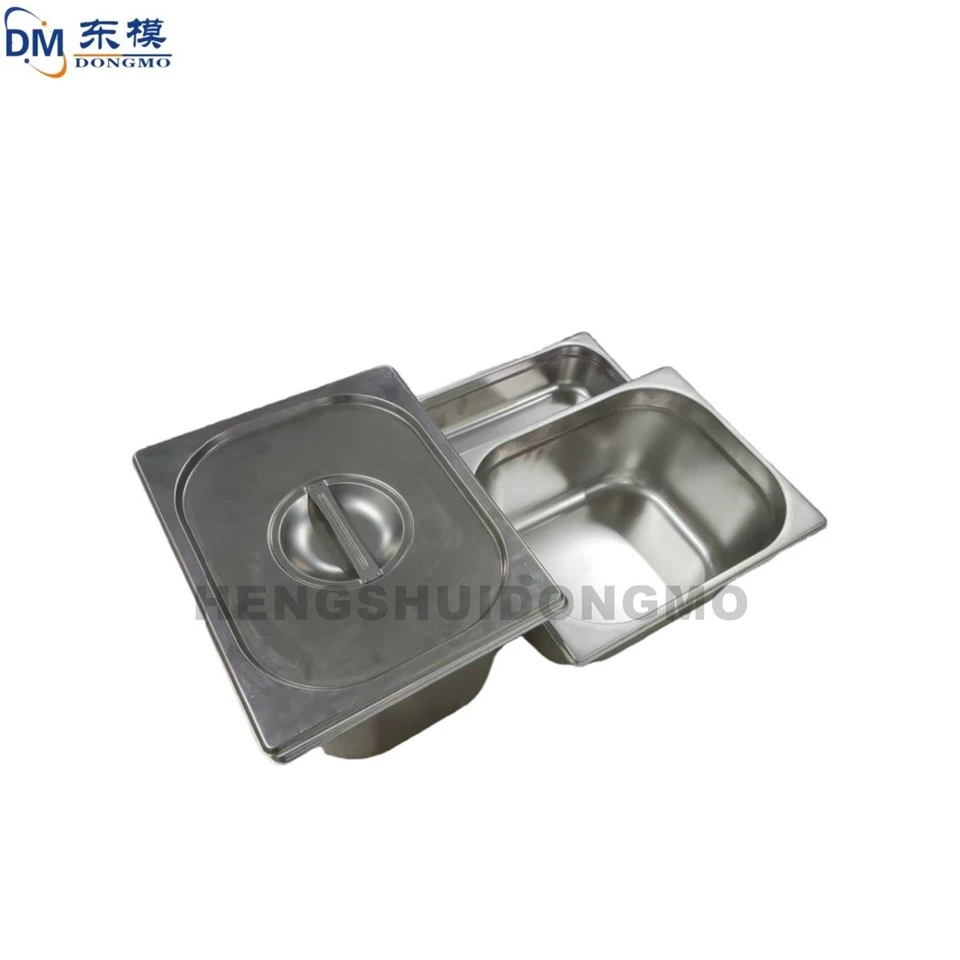

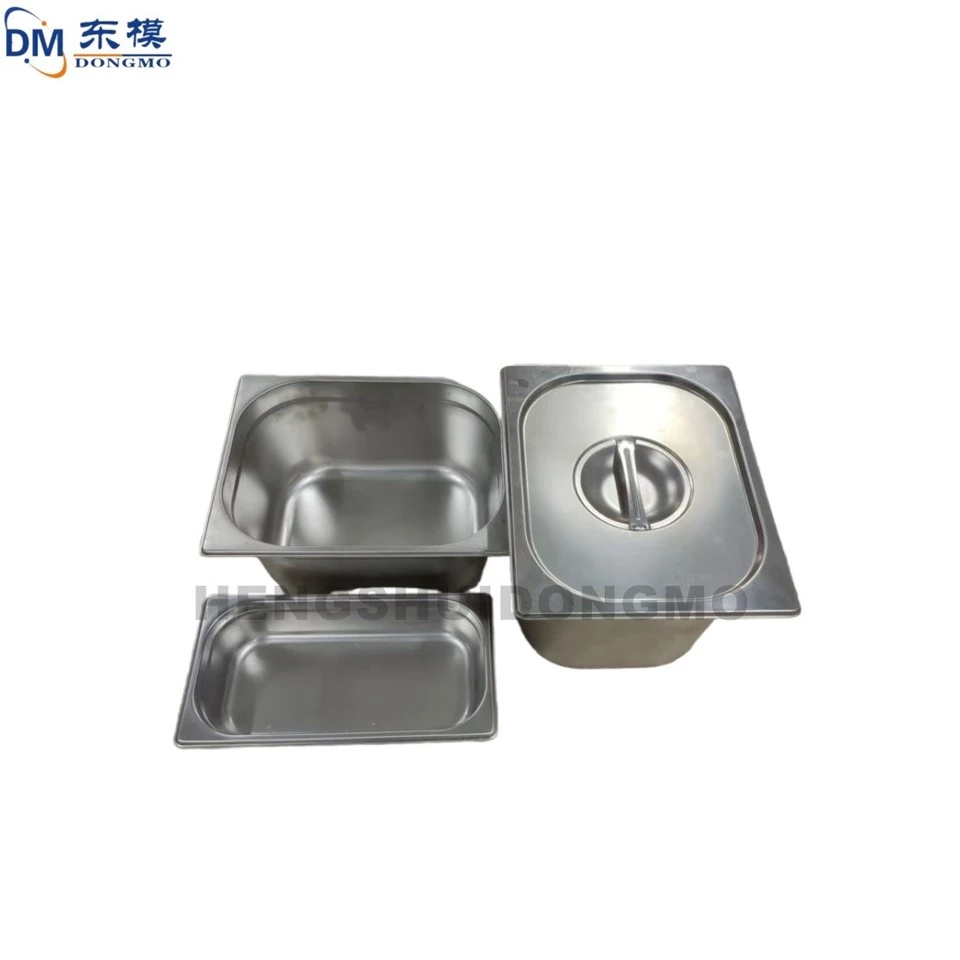

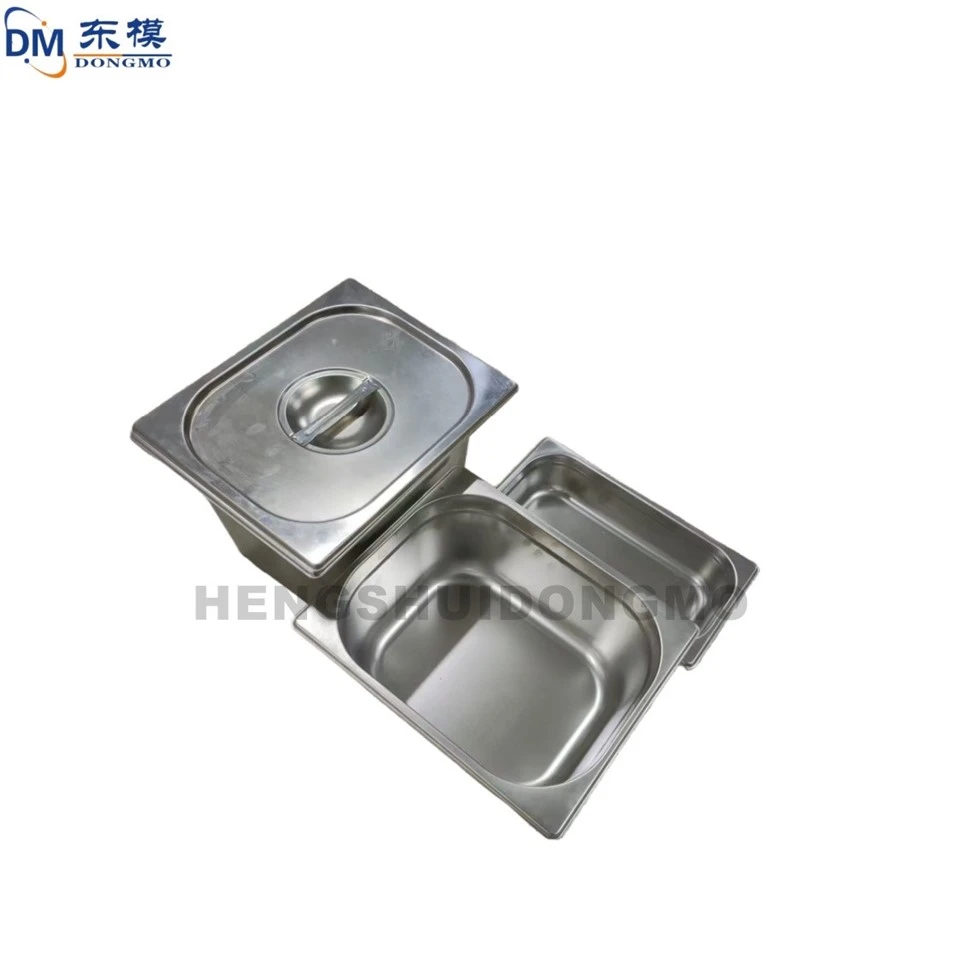

Custom Precision Stainless Steel Deep Drawing Portion Stamping Dies

I. High Design and Process Complexity
Non-standard stamping parts often feature irregular structures, complex curved surfaces, and stringent dimensional tolerances, making it impossible to directly apply the design systems and process schemes of standardized products. Product structural design must simultaneously consider dimensional accuracy, geometric tolerances, and the objective characteristics of material stamping plastic deformation, springback, and cracking. The irregular structure and high precision standards directly increase the difficulty of mold development and impose higher constraints on stamping forming processes and process layouts.

Countermeasures: Fully utilize digital design and manufacturing tools such as CAD and CAM to establish a data link between product structural design and mold structure development. Introduce stamping finite element simulation technology to simulate material flow, stress-strain distribution, and forming limit states, identify forming defect risks in advance, and optimize product structure, mold schemes, and process routes ahead of time, strengthening the scientific rigor and feasibility of the design phase.

II. High Degree of Mold Customization and Long Manufacturing and Debugging Cycles
Non-standard products have a prominent unique characteristic, and most individual products require the independent development of dedicated stamping dies. The precision and structural rationality of mold processing directly determine the forming quality, dimensional stability, and mass production efficiency of stamped parts. Due to factors such as structural differences, material compatibility, and springback during forming, molds require multiple trial runs, repairs, and parameter adjustments after assembly. This process involves numerous steps, a long overall development cycle, and high production costs.

Solution Strategies: Implement a modular and standardized mold design system, unifying the specifications of common components such as basic mold frames, guide components, and elastic parts to achieve rapid assembly and shorten the mold manufacturing cycle. Equip the mold with high-precision machining equipment and precision testing instruments to improve the machining accuracy of mold cavities, cutting edges, and mating parts. Establish a trial mold data ledger to accumulate experience in defect rectification and parameter optimization, and streamline the debugging process using digital means to reduce the frequency of repeated mold repairs.

III. Diverse Raw Material Categories and Difficulty in Controlling Forming Performance: Non-standard customized orders involve multiple categories of raw materials, including steel, aluminum, and alloy plates, with significant differences in plate thickness, mechanical properties, plasticity, and springback coefficients. Different materials have varying forming limits, friction characteristics, and fatigue resistance, making it difficult to standardize and solidify process parameters. This easily leads to quality problems such as tearing, wrinkling, deformation, and dimensional deviations. Fluctuations in raw material properties directly restrict the finished product qualification rate and reliability.

Solution Strategies: Establish a comprehensive raw material performance database, classifying and archiving the mechanical parameters, forming characteristics, and process compatibility ranges of various sheet materials. Conduct routine material stamping process tests to create a standardized process parameter library. Utilize online production process monitoring to collect key production data in real time, dynamically adjusting core parameters such as stamping pressure, closing height, and forming speed based on material fluctuations to stabilize production process control.

IV. Diverse Order Variety and Small Batch Sizes, High Difficulty in Flexible Production Scheduling: Non-standard customized stamping orders are generally characterized by numerous categories, small batches, and tight delivery cycles. Production lines need to frequently switch product models and change molds and tooling fixtures. Frequent product changes can easily cause production rhythm disruptions, decreased equipment utilization, and difficulty in balancing production efficiency and customized delivery requirements, resulting in significant contradictions in production resource allocation.

Countermeasures: Establish a flexible manufacturing system, configure multi-functional stamping equipment, and popularize rapid mold changeover and tooling switching technologies to reduce changeover waiting time. Optimize production scheduling and material control systems, and rationally coordinate order priority, process connection, and resource allocation. Strengthen comprehensive skills training for frontline operators to improve their adaptability to multi-category and multi-process operations, ensuring the orderly operation of mixed-product production lines.

V. Inconsistent Testing Standards, Difficulties in Quality Control and Full-Process Traceability: Non-standard stamped parts from different downstream industries vary significantly in technical standards regarding dimensional accuracy, appearance requirements, mechanical properties, and assembly matching. Generalized testing solutions cannot cover all product testing needs. Furthermore, customized product batches are scattered, with significant parameter differences, making it difficult to uniformly record production processes, material batches, and process parameters, hindering quality problem tracing and full lifecycle quality management.
