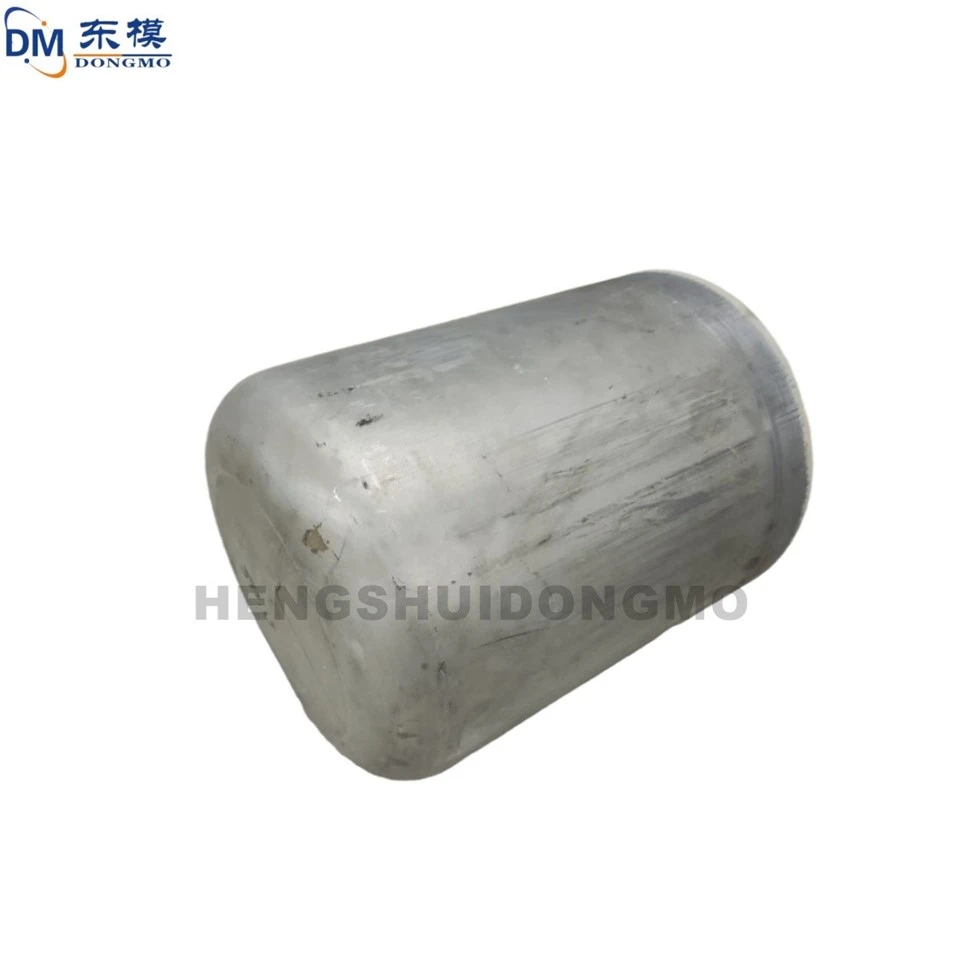

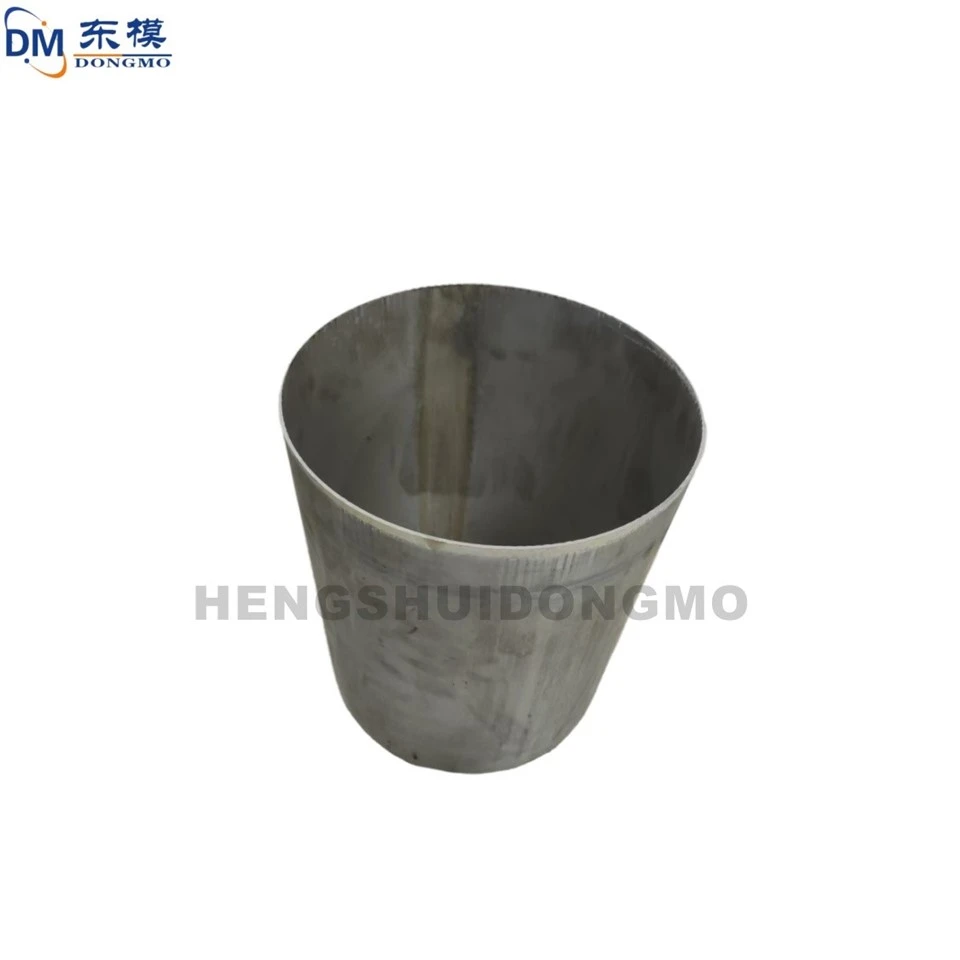

Custom-Made Cylindrical Barrel Head Deep Drawing Stamping Dies

I. The Value of Self-Reliance for Core Components of High-End Stamping Dies
Core components of stamping dies encompass precision die frames, guide components, punches, die steel base materials, and heat treatment systems, directly determining the dimensional accuracy, service life, and long-term operational stability of the die. Self-reliance in core components can solidify the foundation of the domestic die industry, shorten R&D and delivery cycles, and control overall manufacturing costs. Simultaneously, it allows for the continuous accumulation of core technologies, the improvement of upstream and downstream industrial support systems, the construction of a fully self-reliant industrial ecosystem, and a comprehensive enhancement of the controllability of key manufacturing links.

II. Analysis of the Main Challenges in Self-Reliance

1. Shortcomings in Basic Materials and Performance Control
High-end die steels have stringent standards for chemical composition uniformity, microstructure, and heat treatment stability. The comprehensive performance of the material determines the wear resistance and fatigue strength of the die. Domestic die steels still lag behind in key performance indicators. Under high-frequency cyclic loading and complex forming conditions, the material stability and service life cannot fully match imported materials.

2. Bottlenecks in Ultra-Precision Machining Technology: Core components require ultra-high dimensional accuracy, geometric tolerances, and surface quality, resulting in high processing barriers and significant challenges in process control. Domestic ultra-precision machining equipment, precision forming processes, and batch manufacturing control capabilities are insufficient, making it difficult to consistently guarantee the consistency and reliability of mass-produced components, thus hindering the large-scale application of high-end components.

3. Weak Forward R&D and System Design Capabilities: High-end stamping die design integrates multiple disciplines such as materials mechanics, forming simulation, structural mechanics, and process integration. Simulation analysis and digital design tools are core supports for performance optimization. The domestic die industry's R&D system is incomplete, the application depth of high-end simulation design is insufficient, there is a shortage of multi-skilled technical personnel, and weaknesses exist in multidisciplinary collaborative design and adaptability to complex working conditions.

4. Incomplete Supply Chain Supporting System: The localization of core components is a systematic project, relying on the coordinated development of upstream and downstream supporting links such as material processing, precision manufacturing, surface treatment, and testing and calibration. Currently, the connection between various links in the domestic supply chain is insufficient, supporting standards are inconsistent, and process adaptability is poor, directly affecting the efficiency and consistency of component delivery quality.

III. Practical Paths to Overcome Challenges and Industry Development Trends

1. Strengthen Basic Material R&D and Optimize Performance Indicators

Through formula iteration and process standardization, gradually narrow the performance gap between high-end mold steel and similar international products, achieving domestic substitution of some special mold materials.

2. Enhance Precision Machining Capabilities by Leveraging Digital Manufacturing
Popularize high-precision CNC machining equipment, automated production units, and online testing systems; optimize processing parameters through data-driven management and control; and unify manufacturing process standards. Improve the machining accuracy, surface quality, and batch consistency of parts through digital and intelligent production models, bridging the technological gap in precision manufacturing.

3. Build a Multidisciplinary Design System and Strengthen Forward R&D
Integrate molding simulation, mechanical analysis, material adaptation, and process optimization technologies to build an integrated digital design platform. Shorten the R&D cycle, optimize mold structure design, and improve molding adaptability and overall performance under complex working conditions through pre-simulation, virtual mold testing, and rapid solution iteration.

4. Improve Supply Chain Collaboration and Build a Standardized Supporting Ecosystem
Promote deep integration between mold manufacturing enterprises and core component suppliers, connecting the entire process chain from materials, processing, heat treatment, and testing. Unify industry technical standards and quality specifications, jointly build a technology sharing and collaborative R&D mechanism, improve the localization support system, and enhance the overall synergy and resilience of the industrial chain.
